6.1.1 Control device locations

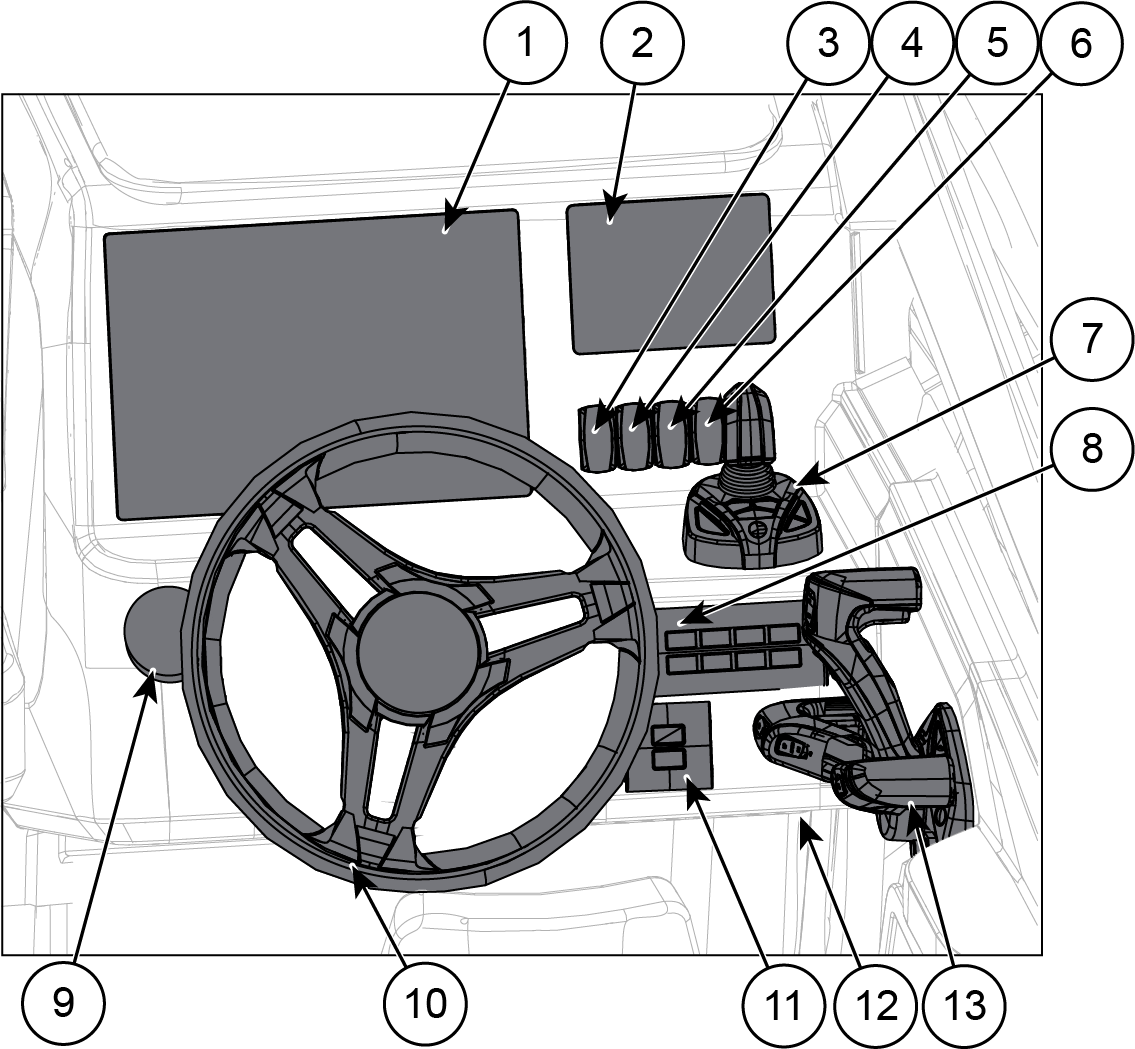

Figure 1. Yamarin 63 DC/BR
helm station controls
1 | Yamarin Q | 8 | Autopilot control panel |
2 | CL-5 touch screen | 9 | Trim tabs control joystick |
3 | Deck lights switch | 10 | Steering wheel |
4 | Navigation lights switch | 11 | Power and start buttons |
5 | Bilge pump switch | 12 | USB socket |
6 | Windshield wipers switch | 13 | Remote control and emergency cut-off switch |
7 | Maneuvering joystick |
