10.3 Locations of draining equipment

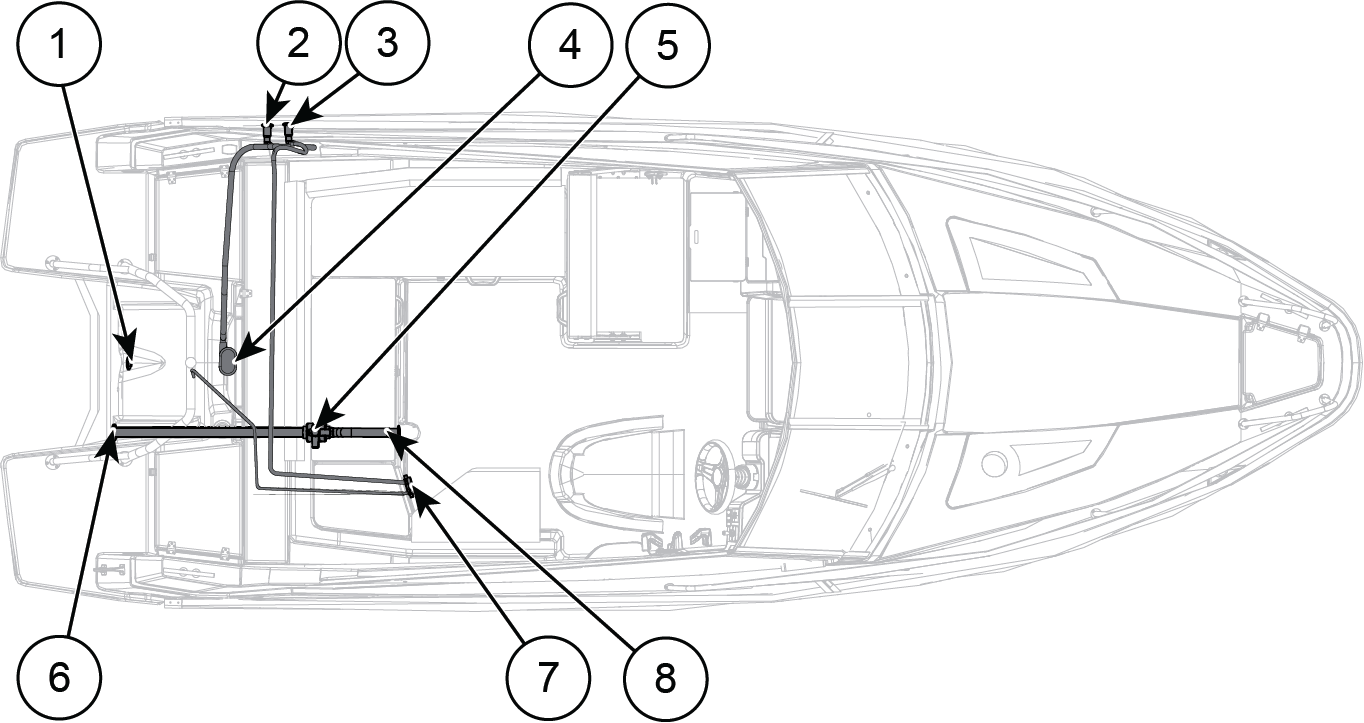

Figure 1. Yamarin 63 DC
bilge pumps and draining
1 | Rear plug | 5 | Rainwater drainage shut-off valve |
2 | Electric bilge pump through fitting | 6 | Shut-off flap |
3 | Manual bilge pump through fitting | 7 | Manual bilge pump |
4 | Electric bilge pump and float switch | 8 | Rainwater drainage through fitting |
The same locations apply to Yamarin 63 BR.
