9.5.1 Locations of electrical equipment

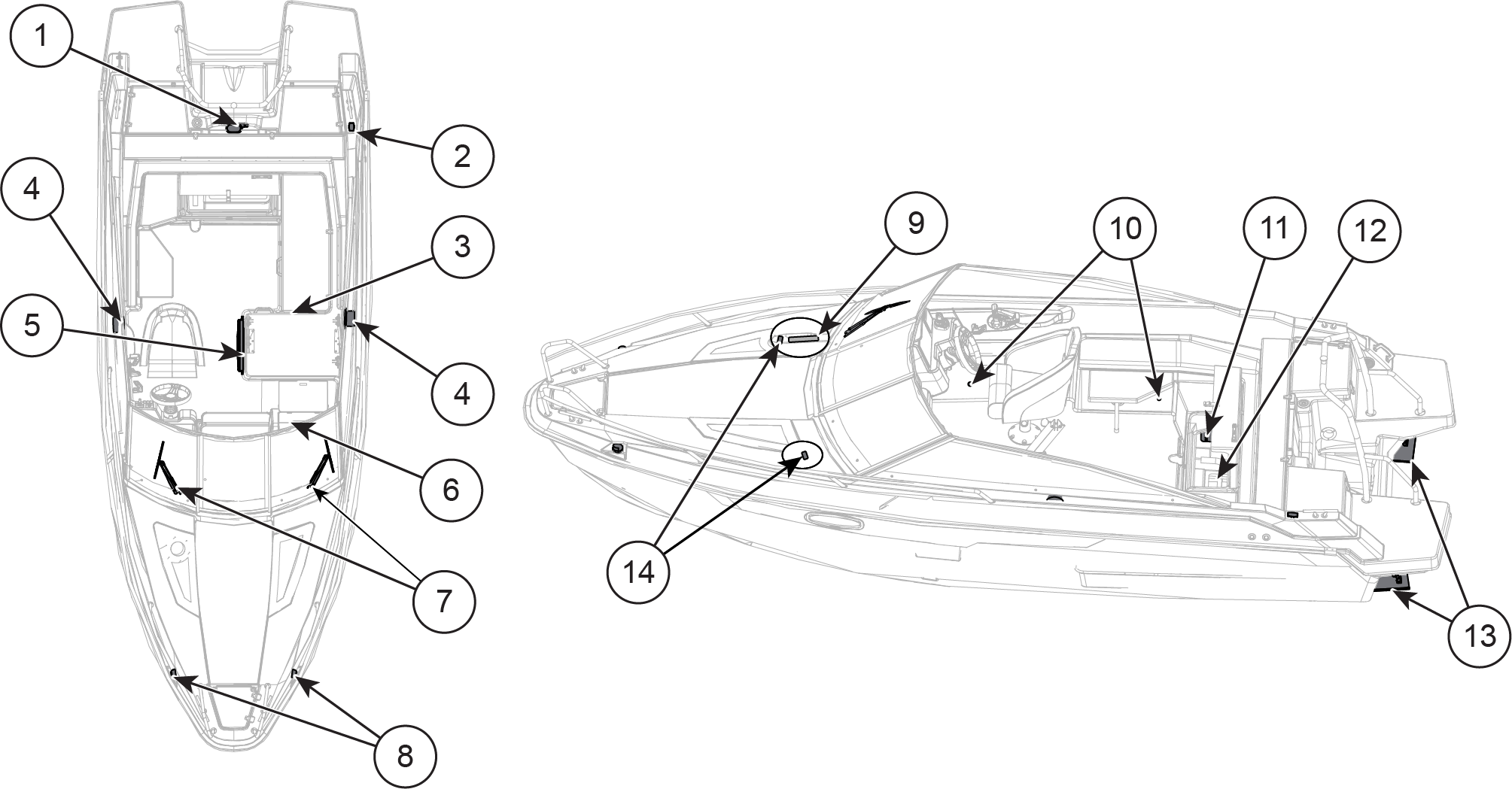

Figure 1. Yamarin 63 DC
electrical equipment
1 | Bilge pump | 8 | Navigation lights |
2 | Light mast | 9 | Additional fuse panel* |
3 | 12 V outlet* | 10 | Deck lights |
4 | Loudspeakers | 11 | Main switch and fuse panel |
5 | Refrigerator | 12 | Battery |
6 | USB socket | 13 | Trim tabs |
7 | Windshield wipers | 14 | Cabin lights* |
The same locations apply to Yamarin 63 BR.
*Note these exceptions for both boat models:
3, 12 V outlet: only available when the boat is not equipped with a refrigerator.
9, Additional fuse panel: different location in Yamarin 63 BR, see Switch and fuse descriptions.
14, Cabin lights: only available in Yamarin 63 DC.
