6.2.6.1 Trim system components

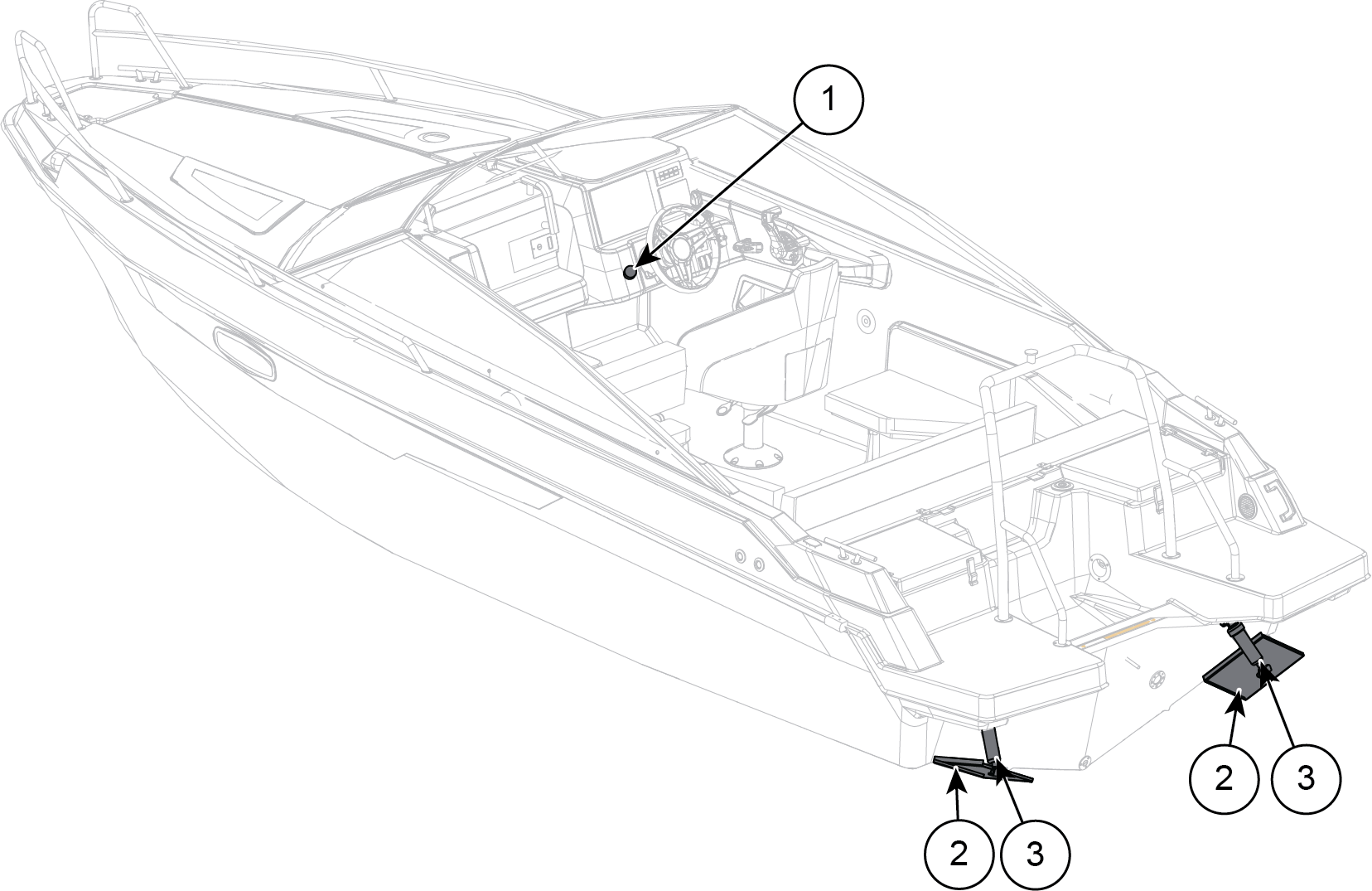

Figure 1. Yamarin 63 DC
trim system
1 | Trim tabs control joystick | 3 | Trim cylinder |
2 | Trim tab |
The same locations apply to Yamarin 63 BR.
