4.3.2 Measurements for antifouling paint area
The measurements indicate the upper limit of the antifouling paint, not the true waterline of the boat.

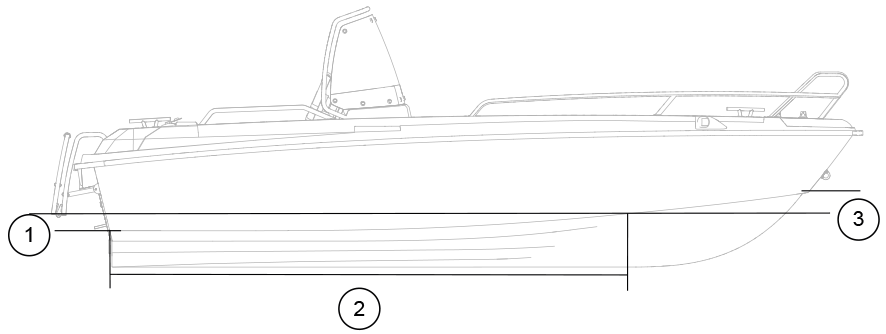

Figure 1. Yamarin 46 SC antifouling paint area
| Position | Description | mm (in) |
|---|---|---|
| 1 | At stern: directly up from chine | 80 mm (3.1") |
| 2 | In chine line: from stern | 1324 mm (52.1") |
| 3 | At bow: down from chine along the bow | 544 mm (21.4") |
