6.1.1 Control device locations

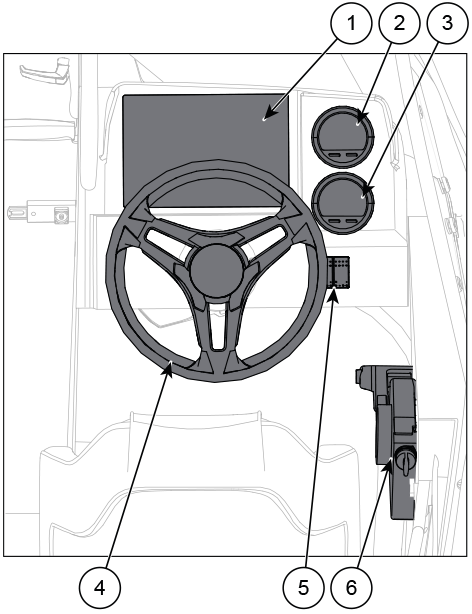

Figure 1. Yamarin 50 BR helm station controls
1 |
Yamarin Q | 4 | Steering wheel |
2 |
Speedometer* | 5 | Navigation lights switch |
3 |
Tachometer* | 6 | Remote controller, emergency cut-off switch, and power and start switch |
*Only available when the boat is not equipped with Yamarin Q.
