7.1 Fuel system components

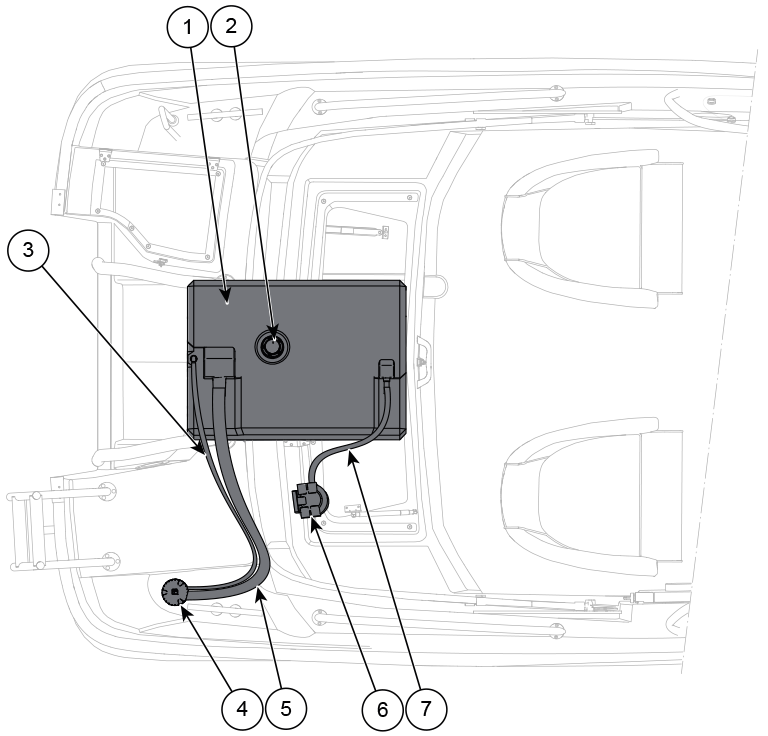

Figure 1. Yamarin 50 BR fuel system components
1 |
Fuel tank | 5 | Filler hose |
2 |
Fuel gauge sender | 6 | Fuel filter |
3 |
Breather hose | 7 | Suction hose |
4 |
Fuel filler |
