4.3.2 Measurements for antifouling paint area
The measurements indicate the upper limit of the antifouling paint, not the true waterline of the boat.

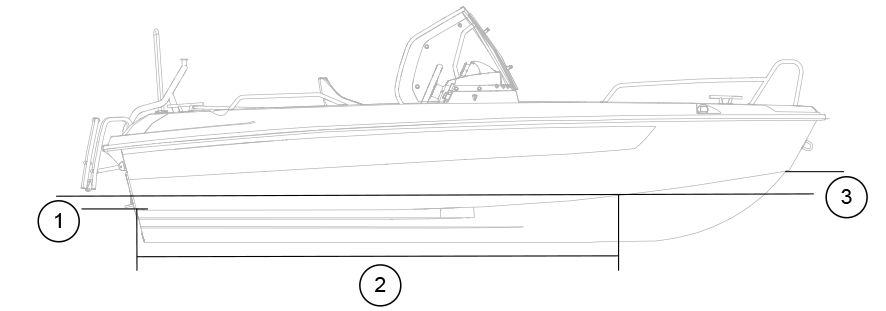

Figure 1. Yamarin 50 BR antifouling
paint area
| Position | Description | mm (in) |
|---|---|---|
| 1 | At stern: directly up from chine | 158 mm (6.2") |
| 2 | In chine line: from stern | 2458 mm (96.8") |
| 3 | At bow: down from chine along the bow | 470 mm (18.5") |
