9.4.1 Locations of electrical equipment

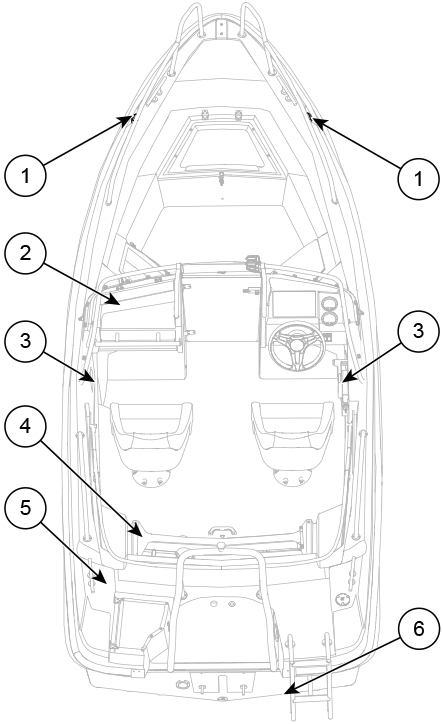

Figure 1. Yamarin 50 BR electrical equipment
1 |
Navigation light | 4 | Main switch, fuse panel and battery |
2 |
USB socket | 5 | Light mast |
3 |
Loudspeaker | 6 | Fishfinder |
