9.2.1 Switch and fuse descriptions

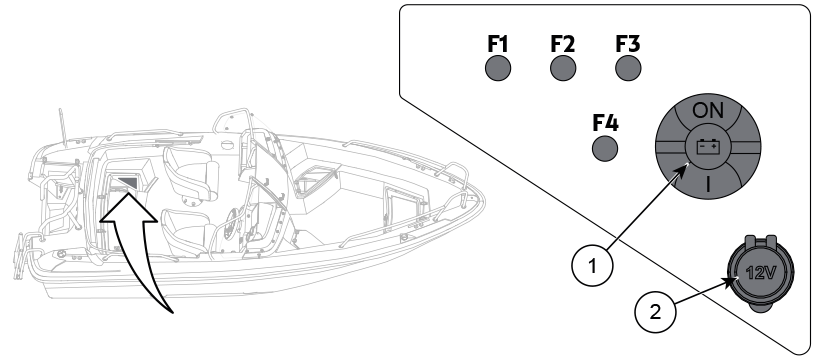

Figure 1. Yamarin 50 BR main switch and fuse panel

1	Main switch		F2	USB outlet/Fishfinder	10 A
2	12 V outlet		F3	NMEA	3 A
F1	Navigation lights	5 A	F4	Yamarin Q	5 A
