6.1.1 Control device locations

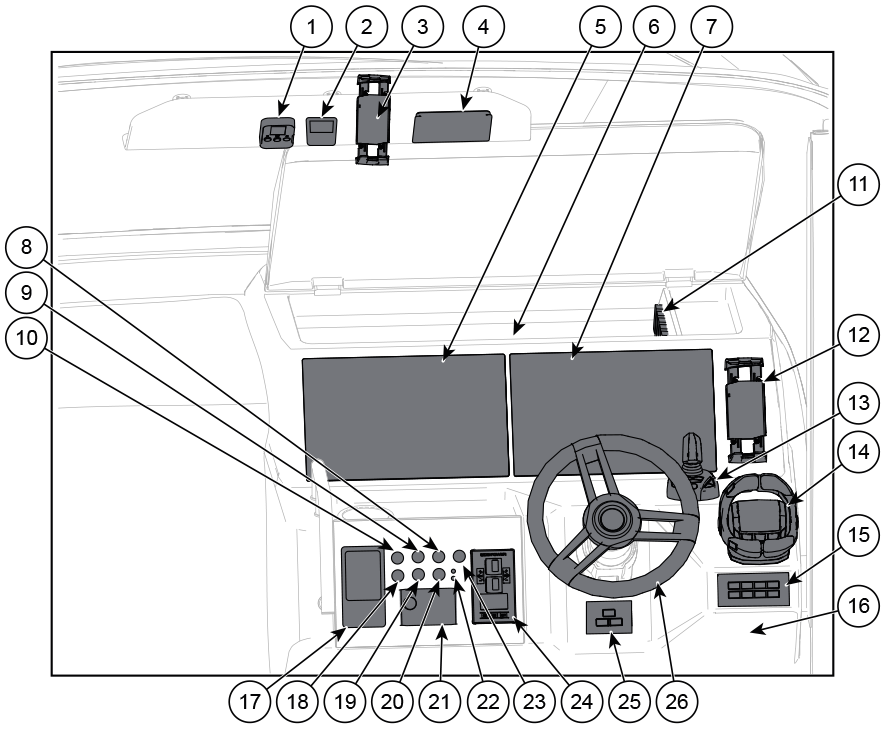

Figure 1. Helm station controls
1 | Heater control panel | 14 | Remote control |
2 |
Air conditioning control panel | 15 | Autopilot control panel |
3 |
Optional placement for wireless charger | 16 | Emergency cut-off switch |
4 | CL-5 touch screen | 17 | Wireless VHF/AIS |
5 | Yamarin Q+ | 18 | Signal horn switch |
6 | Wireless remote controller charging station | 19 | Windshield wiper switch |
7 | Yamarin Q | 20 | Windshield wiper speed switch |
8 | Forward bilge pump switch | 21 | Fusion ERX |
9 | Anchoring light switch | 22 | Bilge pumps' indicators |
10 | Navigation lights switch | 23 | Aft bilge pump switch |
11 | Main switch remote switches | 24 | Bow thruster control panel |
12 | Optional placement for wireless charger | 25 | Power and start buttons |
13 | Maneuvering joystick | 26 | Steering wheel |
