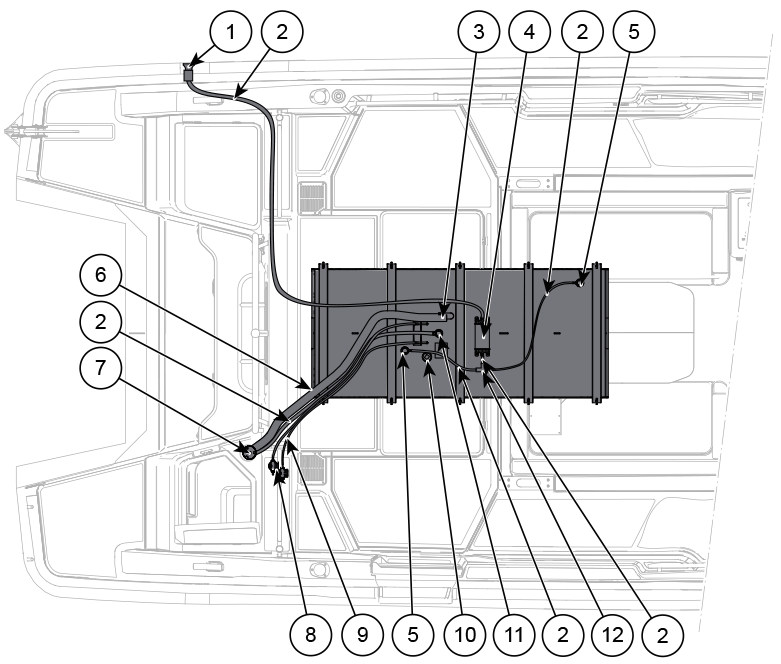

7.1 Fuel system components

1

P-trap and breather through vent

7

Fuel filler and breather

2

Breather hose

8

Fuel filters

3

Inlet check valve

9

Suction hoses

4

Carbon canister

10

Fuel sensor

5

Tank vent valve

11

Fill limit valve

6

Filler hose

12

Y-valve
