10.2 Locations of draining equipment

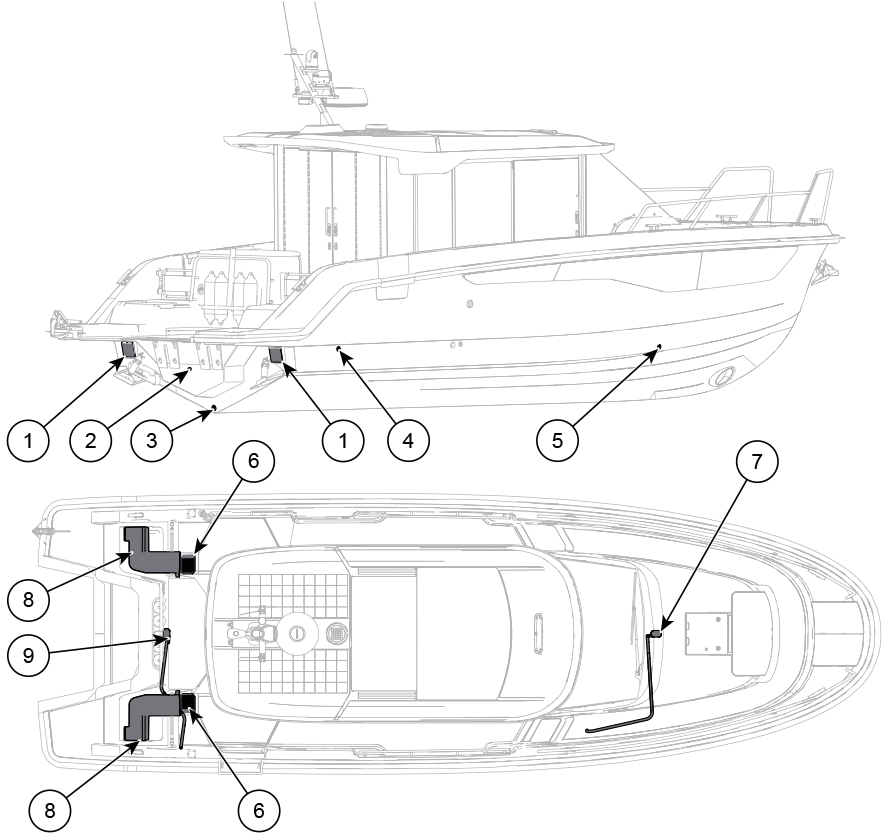

Figure 1. Bilge pumps and draining
1 |
Rainwater drainage shut-off flap | 6 | Rainwater drainage |
2 |
Engine well drainage | 7 | Forward electric bilge pump and float switch |
3 |
Rear plug | 8 | Rainwater drainage gutter |
4 |
Aft bilge pump through fitting | 9 | Aft electric bilge pump and float switch |
5 |
Forward bilge pump through fitting |
