6.1.1 Control device locations

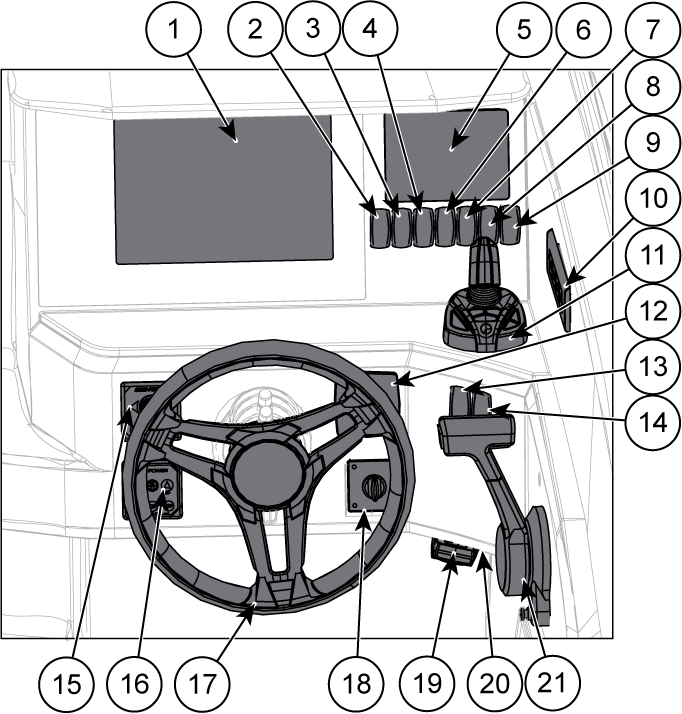

Figure 1. Yamarin 67 DC
helm station controls
1 | Yamarin Q | 12 | Trim tabs control joystick |
2 | Water pump switch | 13 | Signal horn switch |
3 | Fridge power switch | 14 | Underwater lights switch |
4 | Left windshield wiper switch | 15 | Anchor winch control panel |
5 | CL-5 touch screen | 16 | Bow thruster control panel |
6 | Right windshield wiper switch | 17 | Steering wheel |
7 | Bilge pump switch | 18 | Power and start buttons |
8 | Deck lights switch | 19 | Anchor winch and bow thruster remote controller |
9 | Navigation lights switch | 20 | USB socket |
10 | Autopilot control panel | 21 | Remote control and emergency cut-off switch |
11 | Manoeuvring joystick |
