6.2.6.1 Composants du système de trim

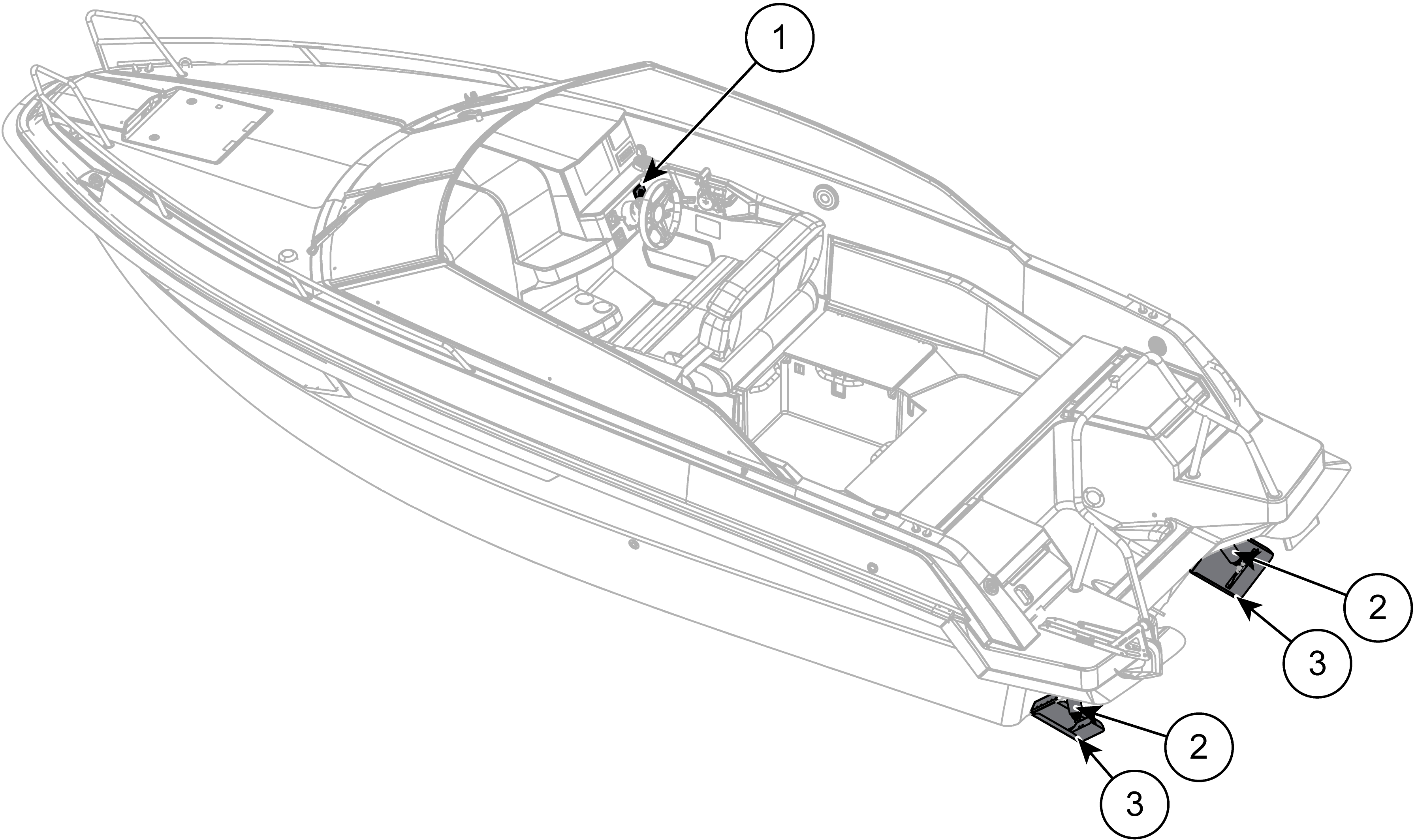

Figure 1. Yamarin 67 DC - Système de trim
1 | Commandes de trim | 3 | Flap |
2 | Cylindre de trim |
