4.3.2 Measurements for antifouling paint area
The measurements indicate the upper limit of the antifouling paint, not the true waterline of the boat.

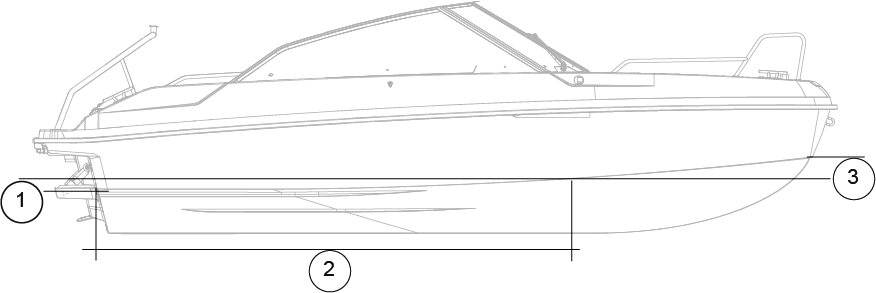

Figure 1. Yamarin 59 BR/SC antifouling paint area
| Position | Description | 59 BR | 59 SC |
|---|---|---|---|
| 1 | At stern: directly up from chine | 120 mm (4.7") | 120 mm (4.7") |
| 2 | In chine line: from stern | 3100 mm (122") | 2200 mm (86.6") |
| 3 | At bow: down from chine along the bow | 290 mm (11.4") | 500 mm (19.7") |
