9.4.1 Locations of electrical equipment

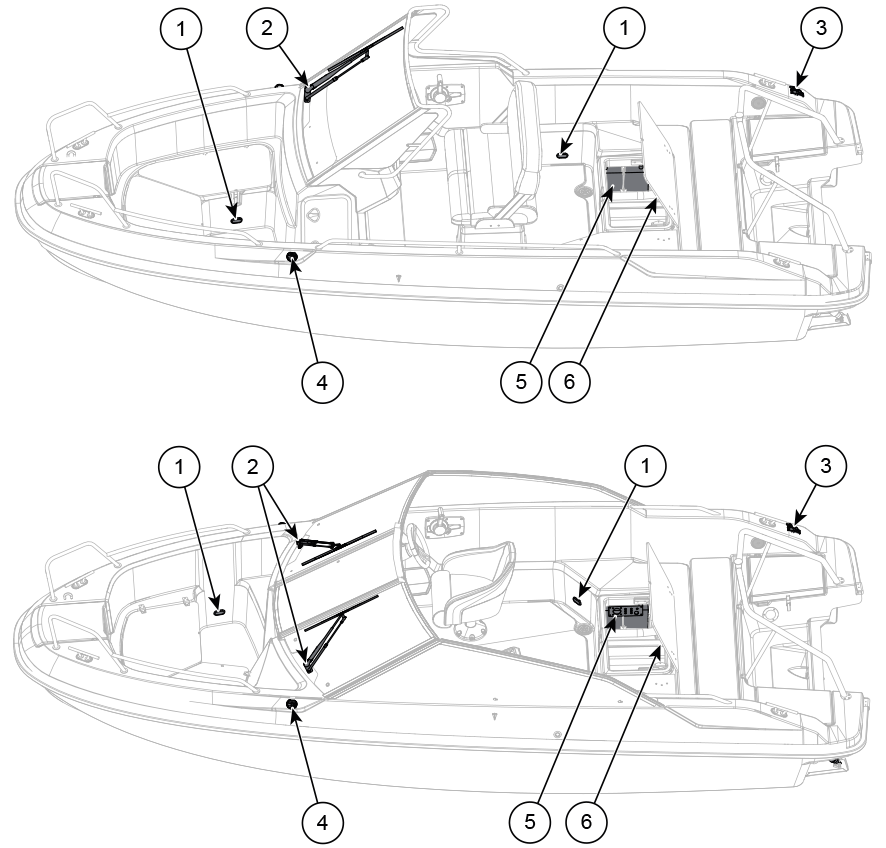

Figure 1. Yamarin 59 BR/SC electrical
equipment
1 |
Deck light | 4 | Navigation light |
2 |
Windshield wiper | 5 | Battery |
3 |
Light mast | 6 | Main switch and fuse panel |

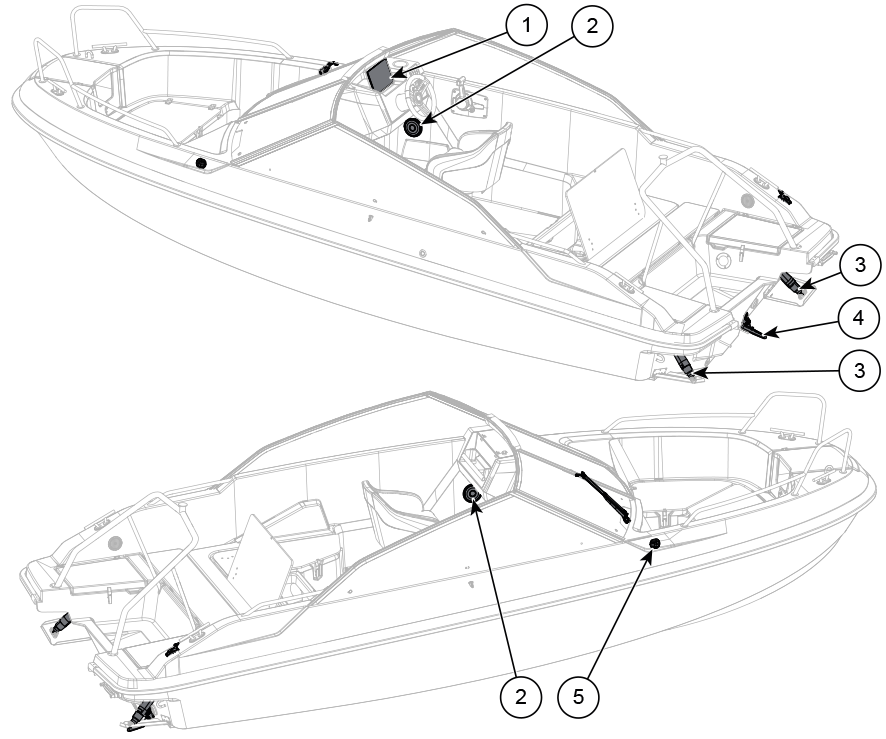

Figure 2. Yamarin 59 BR electrical
equipment
1 |
Yamarin Q | 3 | Trim tabs |
2 |
Loudspeaker | 4 | Fishfinder |
The same locations apply to Yamarin 59 SC.
