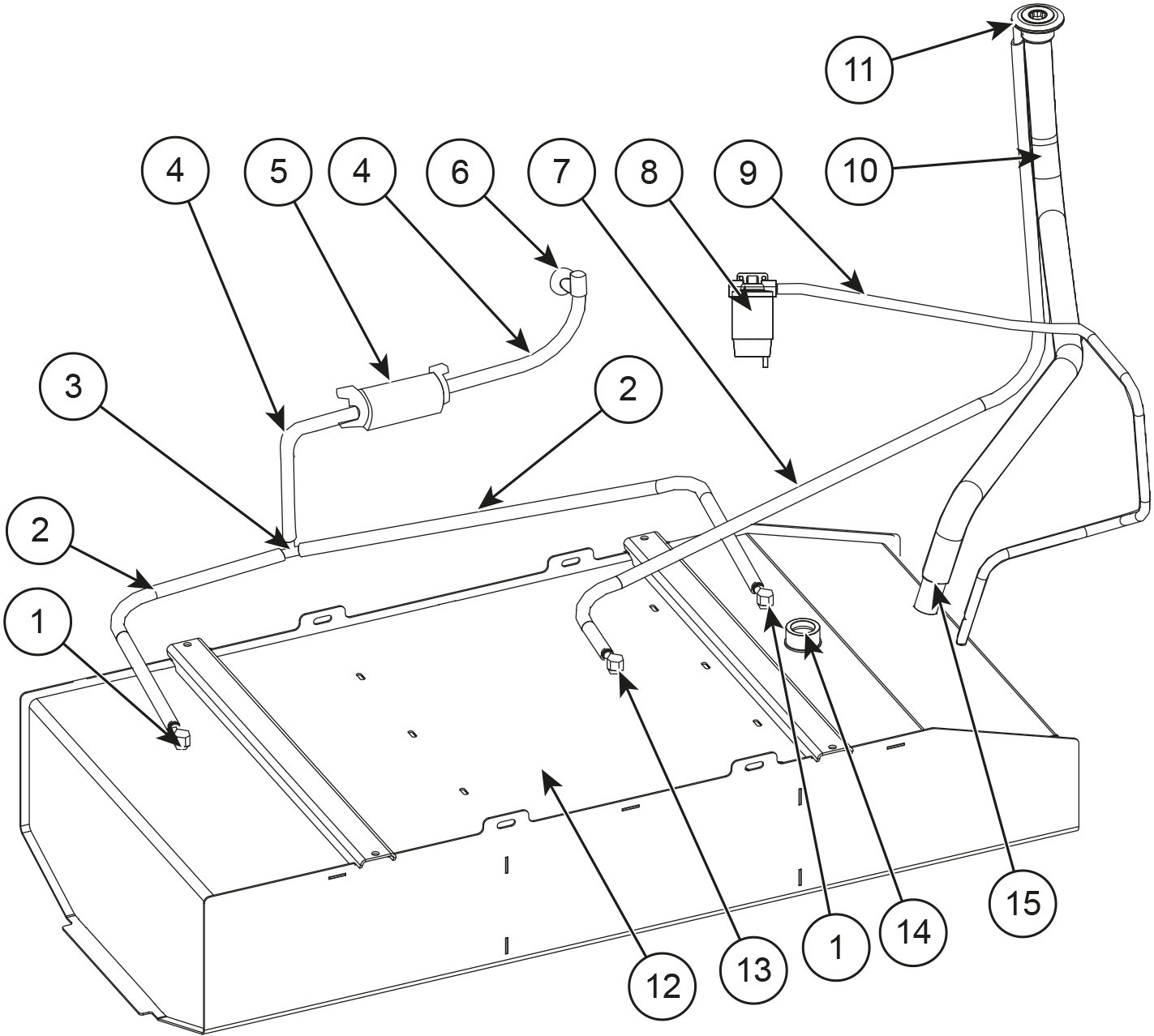

7.1 Fuel system components

1

Tank vent valve

9

Suction hose

2

Breather hose

10

Filler hose

3

Y-valve

11

Fuel filler

4

Breather hose

12

Fuel tank

5

Carbon canister

13

Fill limit valve

6

P-trap and breather through vent

14

Fuel sensor

7

Breather hose

15

Inlet check valve

8

Fuel filter
