4.3.2 Measurements for antifouling paint area
The measurements indicate the upper limit of the antifouling paint, not the true waterline of the boat.

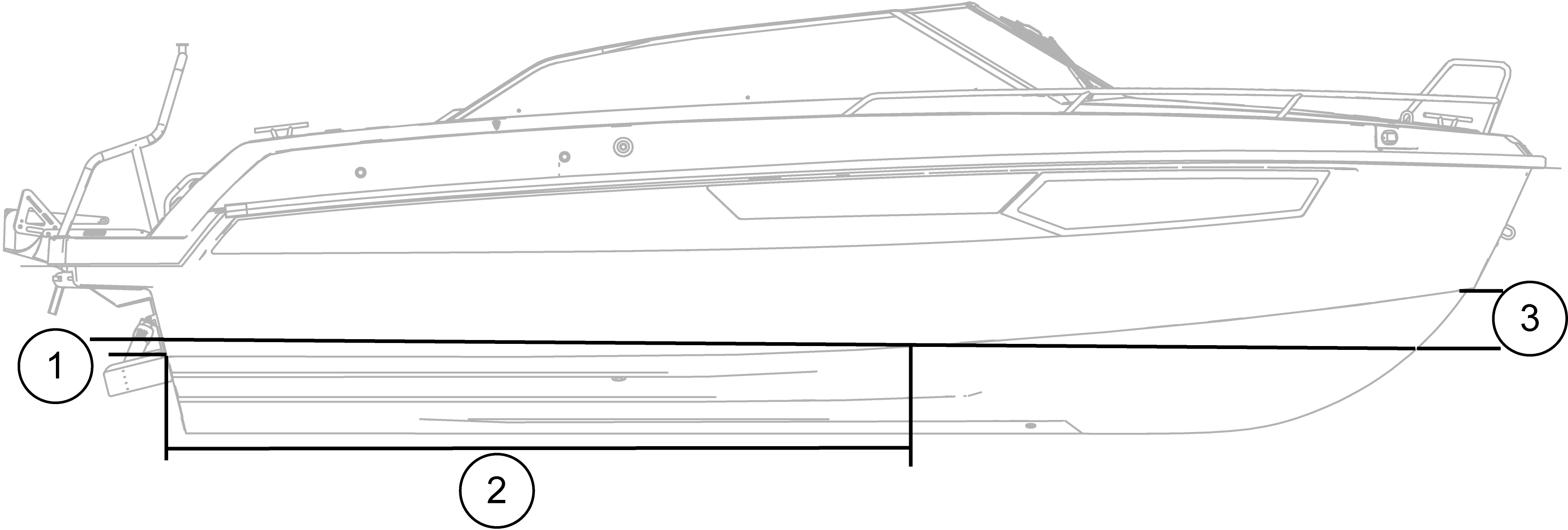

Figure 1. Yamarin 67 DC antifouling paint area
| Position | Description | mm (in) |
|---|---|---|
| 1 | At stern: directly up from chine | 160 mm (6.3") |
| 2 | In chine line: from stern | 3100 mm (122") |
| 3 | At bow: down from chine along the bow | 500 mm (20") |
