10.3 Locations of draining equipment

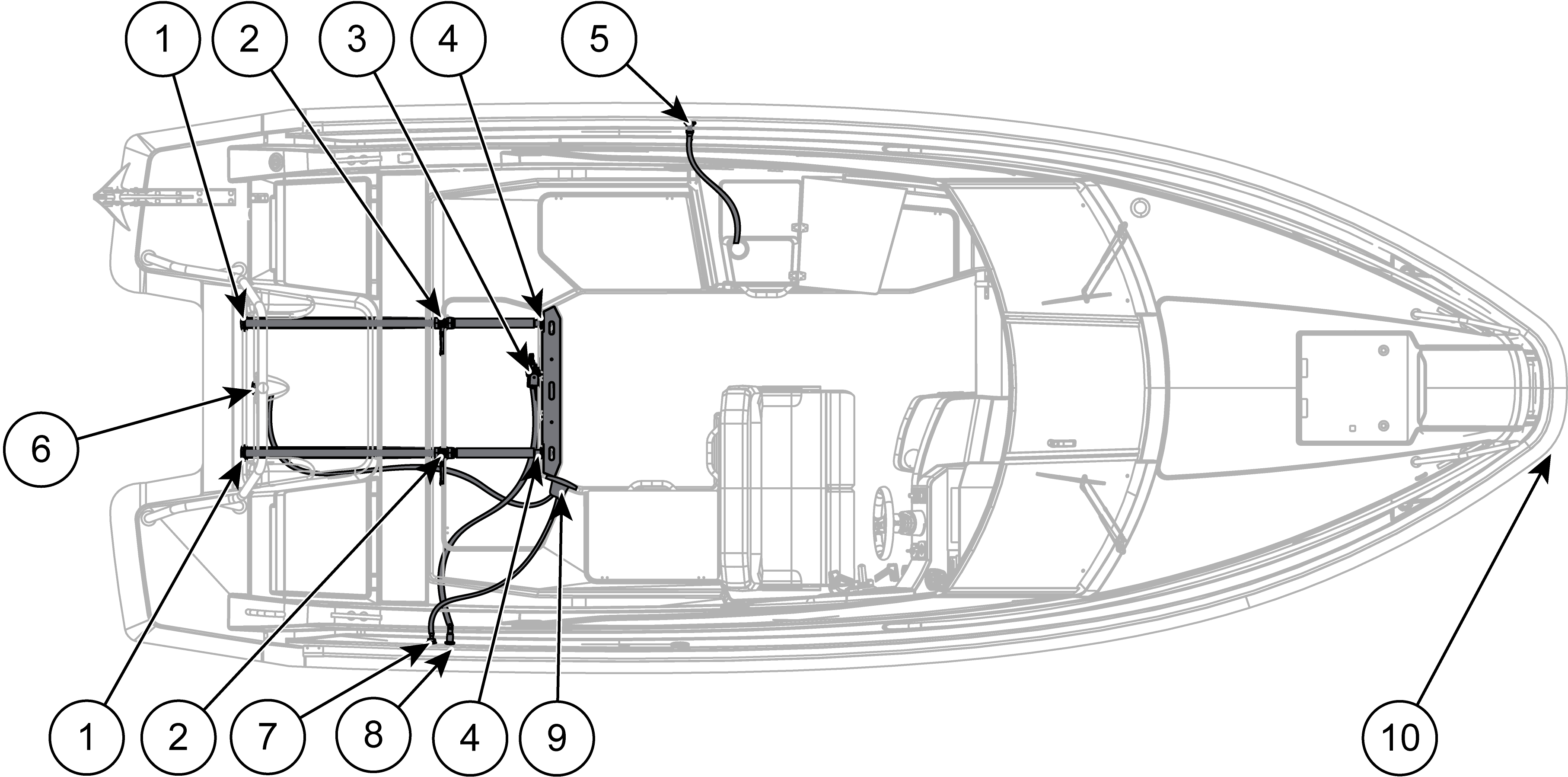

Figure 1. Yamarin 67 DC bilge pumps and
draining
1 |
Shut-off flap | 6 | Rear plug |
2 |
Rainwater drainage shut-off valve | 7 | Manual bilge pump through fitting |
3 |
Electric bilge pump and float switch | 8 | Electric bilge pump through fitting |
4 |
Rainwater drainage through fitting | 9 | Manual bilge pump |
5 |
Pantry sink drainage through fitting | 10 | Rope box drainage through fitting |
