6.2.6.1 Trim system components

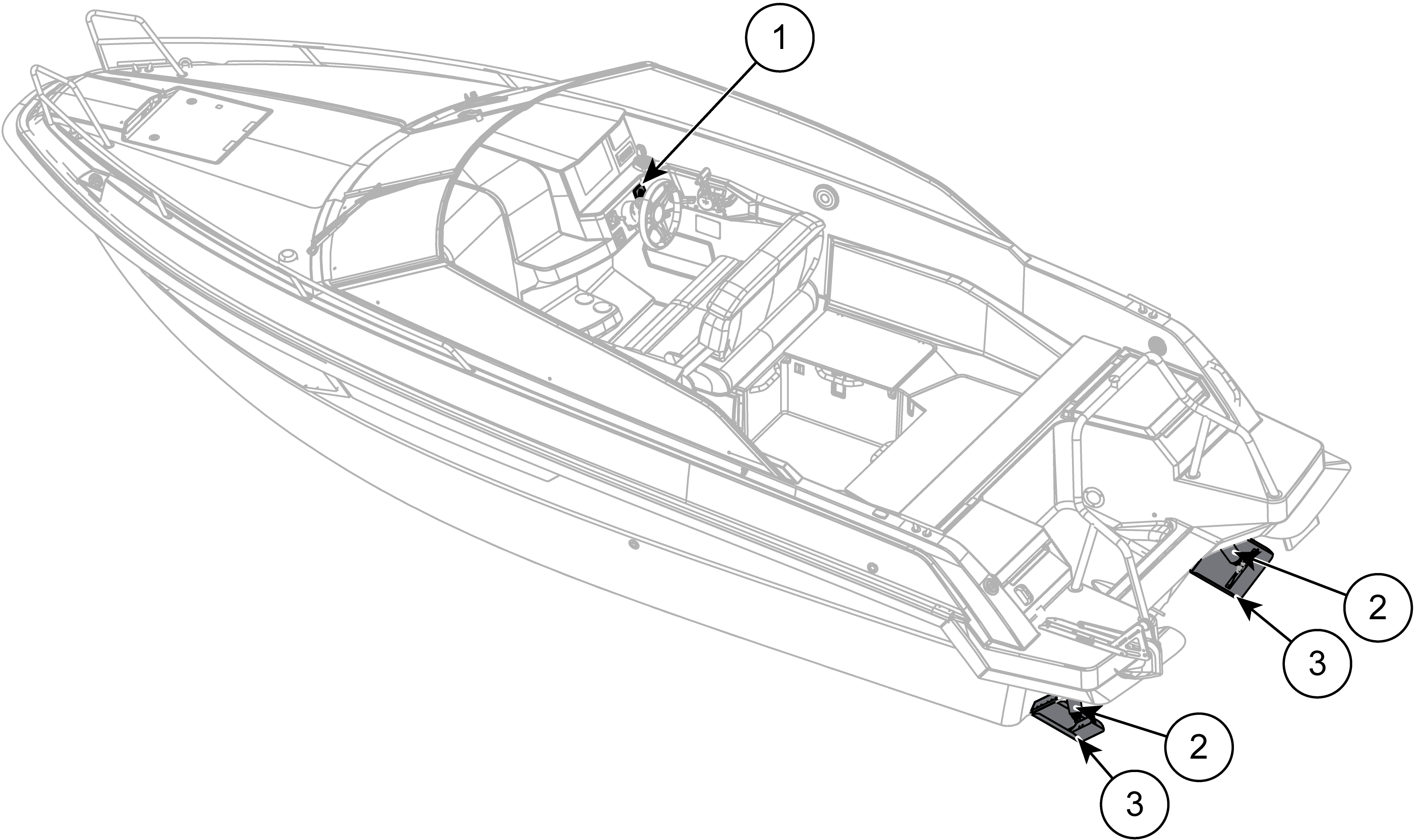

Figure 1. Yamarin 67 DC trim system
1 | Trim controls | 3 | Trim tab |
2 | Trim cylinder |
