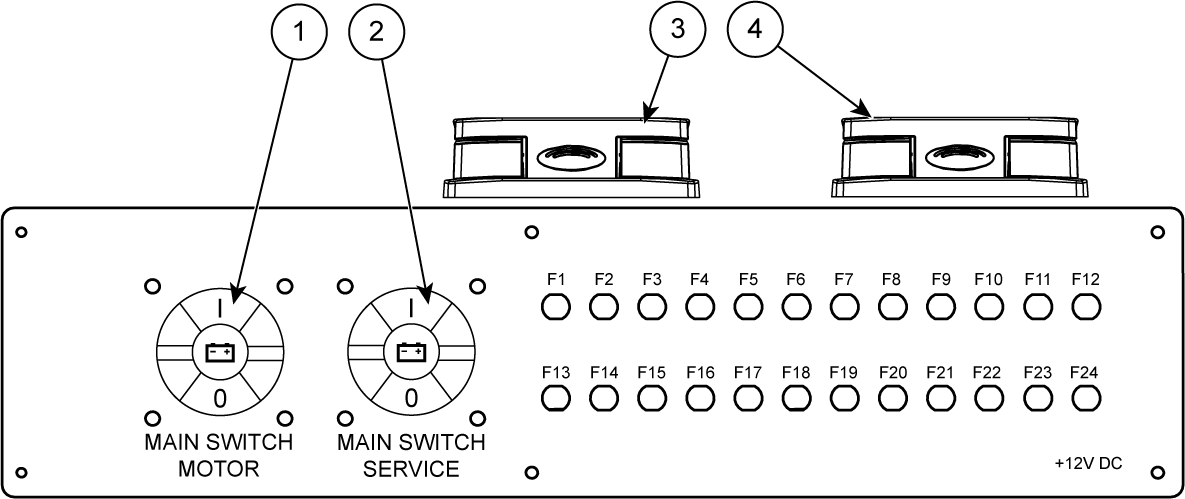

9.2.1 Switch and fuse descriptions

1

Main switch motor

F11

Stove *

10 A

2

Main switch service

F12

Yamarin Q

10 A

3

Isolator fuse

100 A

F13

Windshield wipers

10 A

4

Main fuse

80 A

F14

Shower pump/pantry tap

10 A

F1

Fridge *

20 A

F15

Solar panel

10 A

F2

Heater *

15 A

F16

Cabin spot lights

5 A

F3

Bilge pump

10 A

F17

Trim tabs

20 A

F4

Fishfinder

10 A

F18

Power steering

40 A

F5

Water pump/Deck lights

10 A

F19

Septic tank gauge

3 A

F6

Navigation lights

10 A

F20

Cabin led lights

10 A

F7

Audio

25 A

F21

Extra

10 A

F8

12 V outlet/USB socket

10 A

F22

Underwater lights

10 A

F9

NMEA

3 A

F23

Signal horn

5 A

F10

 Extra

10 A

F24

Audio amplifier

50 A
