3.3.1 Helm station and deck area

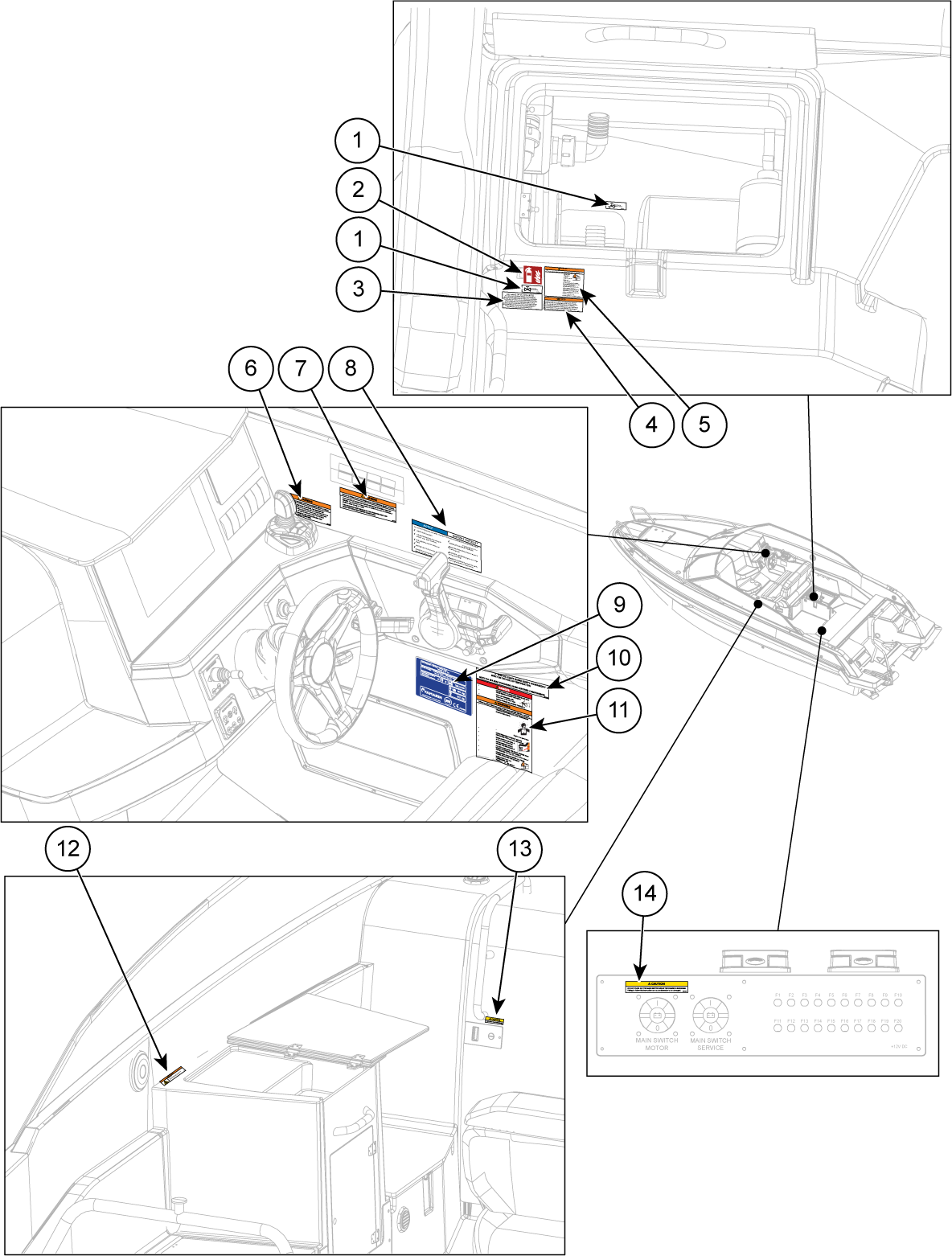

Figure 1. Helm station and deck safety labels
|
1 |
|
Waste tank shutoff valve label |
804330 |
|
2 |
|
Fire extinguisher symbol |
YMYSA |
|
3 |
|
Oil discharge prohibited label |
804339 |
|
4 |
|
P65 warning label |
804337 |
|
5 |
|
Deck combined warning label |
804334 |
|
6 |
|
Autopilot warning label |
804332 |
|
7 |
|
Setpoint warning label |
804325 |
|
8 |
|
Boater’s checklist |
804336 |
|
9 |
|
Builder's plate |
|
|
10 |
|
EPA compliance label |
804362 |
|
11 |
|
Helm station combined warning label |
804322 |
|
12 |
|
Hot stove warning label |
804321 |
|
13 |
|
Keep shut caution label |
804323 |
|
14 |
|
Main switch caution label |
804324 |
