9.2.1 Switch and fuse descriptions

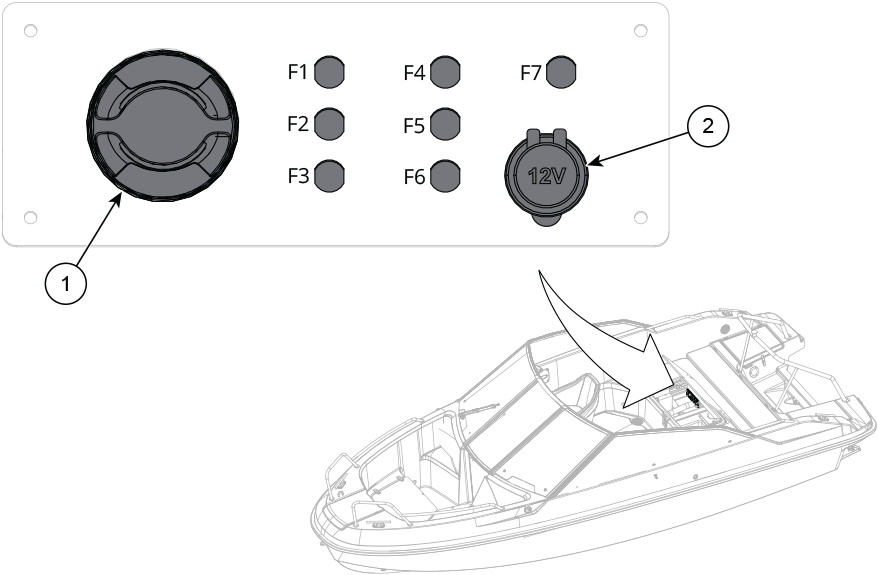

Figure 1. Yamarin 59 BR/SC main switch and fuse panel
1 Main switch   F4 USB outlets 15 A
2 12 V outlet   F5 NMEA 3 A
F1 Windshield wipers 10 A F6 Trim tabs 30 A
F2 Navigation lights 5 A F7 Yamarin Q 5 A
F3 12 V outlet/deck lights 15 A
