3.3.1 Safety label descriptions and locations
| Location |
Safety label |
Description |
|---|---|---|
1 |
 |
Keep the pantry cover plate in open position when the stove is hot. |
| 2 |
|
Fuel inlet. |
| 3 |
|
Location of fire extinguisher. |
| 4 |
|
Always attach the emergency cut-off cord when driving the boat. |
| 5 |
|
Close the windshield door when travelling at a speed of more than 5 knots. |

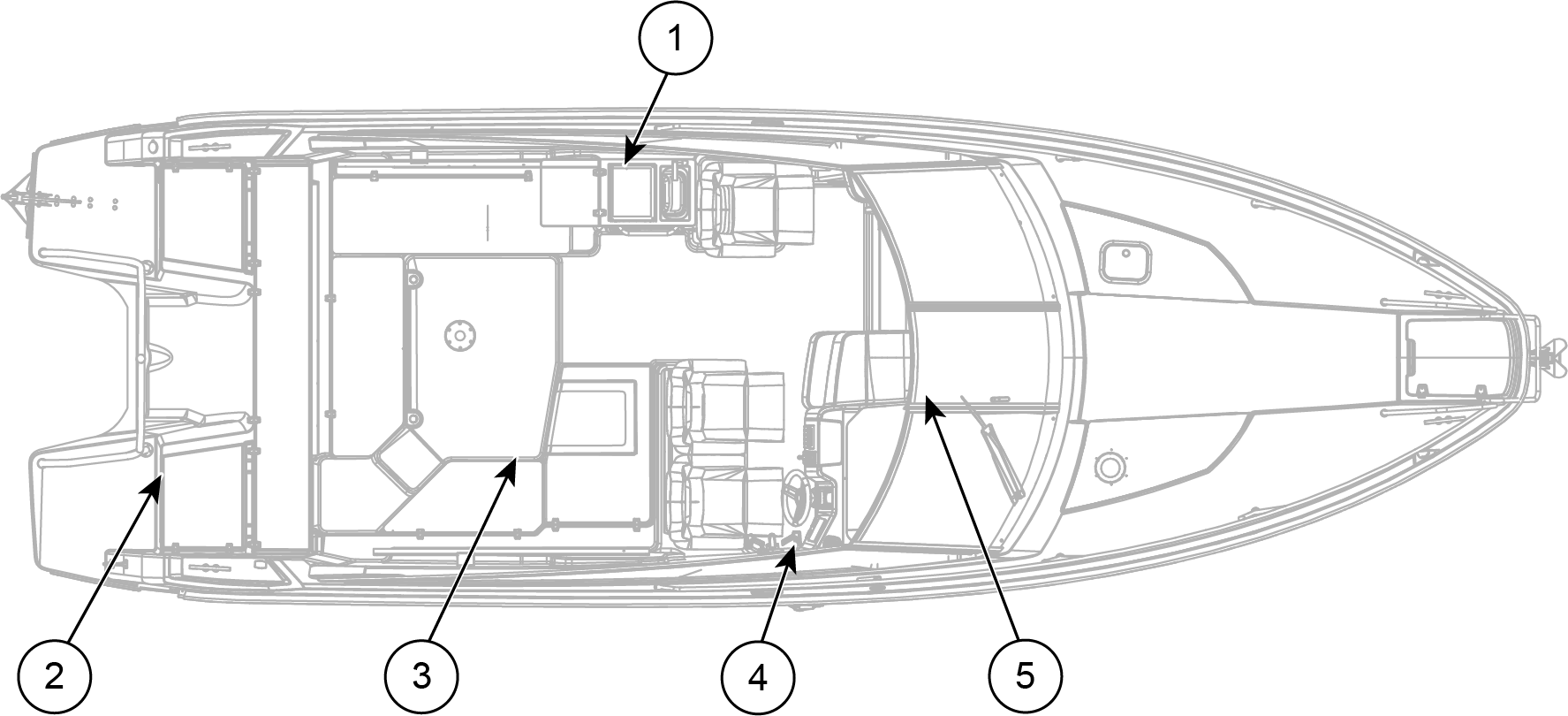

Figure 1. Yamarin 88 DC
safety labels
