9.2.1 Switch and fuse descriptions

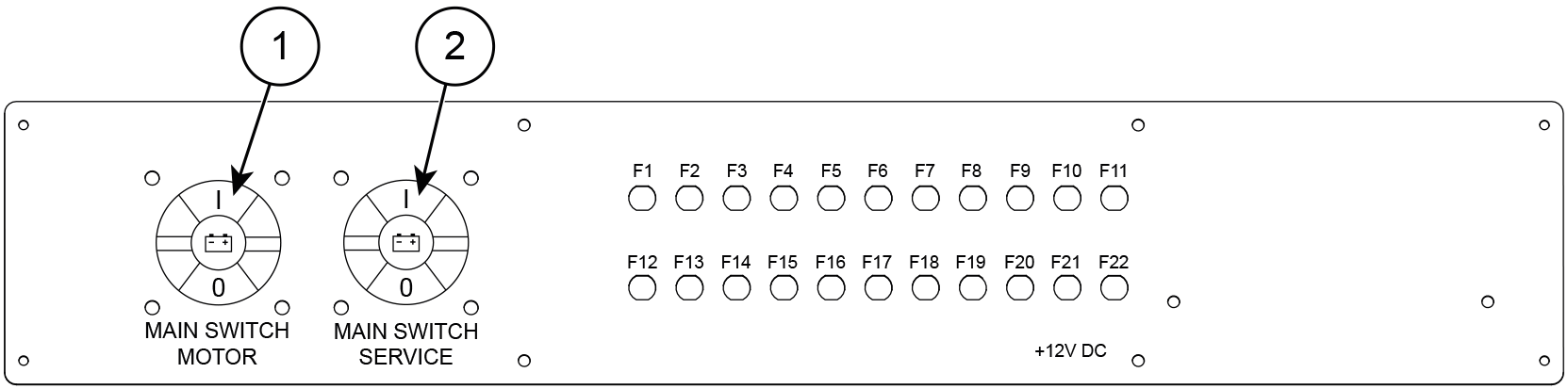

Figure 1. Yamarin 88 DC
main switches and fuse panel
| 1 |
Main switch, engine |
F11 |
Extra |
10A |
|
| 2 |
Main switch, service |
F12 |
Yamarin Q |
10A |
|
| F1 |
Fridge |
20A |
F13 |
Wipers |
10A |
| F2 |
Heater |
20A |
F14 |
Shower pump |
10A |
| F3 |
Bilge pump |
10A |
F15 |
Toilet lights |
10A |
| F4 |
USB-port |
10A |
F16 |
Cabin lights |
5A |
| F5 |
Water pump and deck lights |
10A |
F17 |
Trim tabs |
20A |
| F6 |
Navigational lights |
10A |
F18 |
Power steering |
40A |
| F7 |
Audio |
25A |
F19 |
Toilet |
25A |
| F8 |
DC-outlet |
10A |
F20 |
Mid cabin |
10A |
| F9 |
NMEA |
3A |
F21 |
Stove |
20A |
| F10 |
Fishfinder |
10A |
F22 |
Extra |
10A |
Fuses F2 and F21 are on-off type fuses that are operated by pushing the fuse cap. These fuses function as the main switch for the devices that are connected to them.
