10.3 Locations of draining equipment

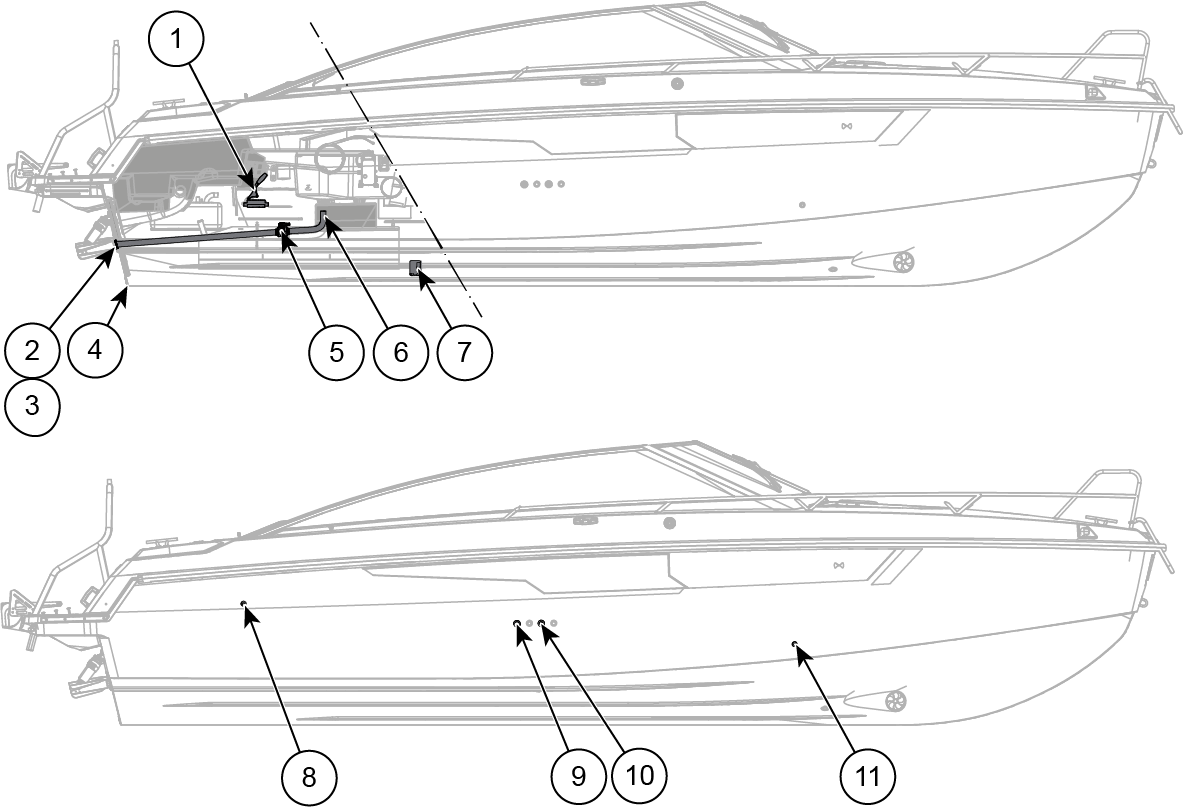

Figure 1. Yamarin 88 DC bilge pumps and draining

  1. Manual bilge pump

  2. Open deck space drainage pump

  3. Shut-off flap

  4. Bilge compartment drainage plug

  5. Rainwater drainage shut-off valve

  6. Rainwater drainage through fitting

  7. Electric bilge pump and float switch

  8. Manual bilge pump through fitting

  9. Electric bilge pump through fitting

  10. Toilet floor drainage through fitting

  11. Toilet sink through fitting
