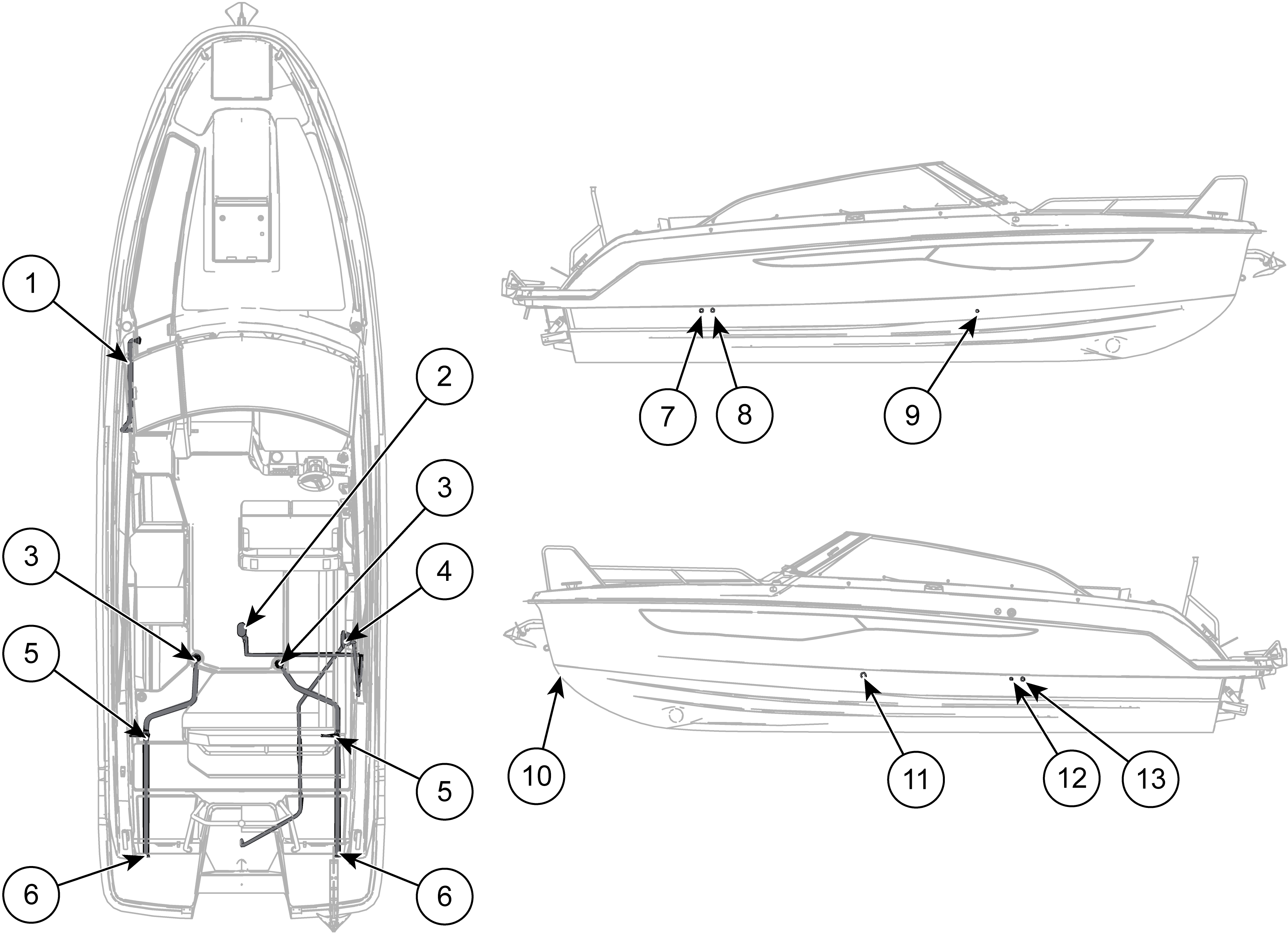

10.3 Locations of draining equipment

1

Front deck drainage

8

Electric bilge pump through fitting

2

Electric bilge pump and float switch

9

Toilet sink drainage through fitting

3

Rainwater drainage through fitting

10

Rope box drainage through fitting

4

Manual bilge pump

11

Front deck drainage through fitting

5

Rainwater drainage shut-off valve

12

Pantry sink drainage through fitting

6

Shut-off flap

13

Ice box drainage through fitting

7

Manual bilge pump through fitting
