12.2.3 Bow anchor winch

The boat can be equipped with a bow anchor winch. The winch is operated and maintained the same way as the aft anchor. See Anchor winch.

The bow anchor winch is powered by an additional battery located in the service hatch in the cabin. See Additional battery and main switches.

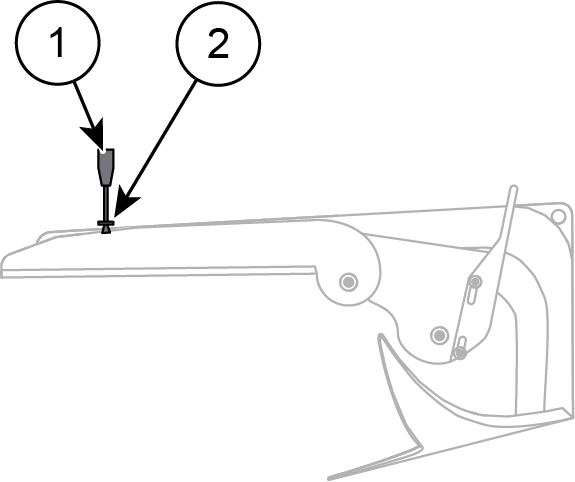

The bow anchor guide has an additional securing mechanism to keep the anchor from moving while not in use. Secure the anchor in place with the securing plate and thumbscrews that are integrated into the anchor guide.
