7.3.1 Fuel-operated equipment components

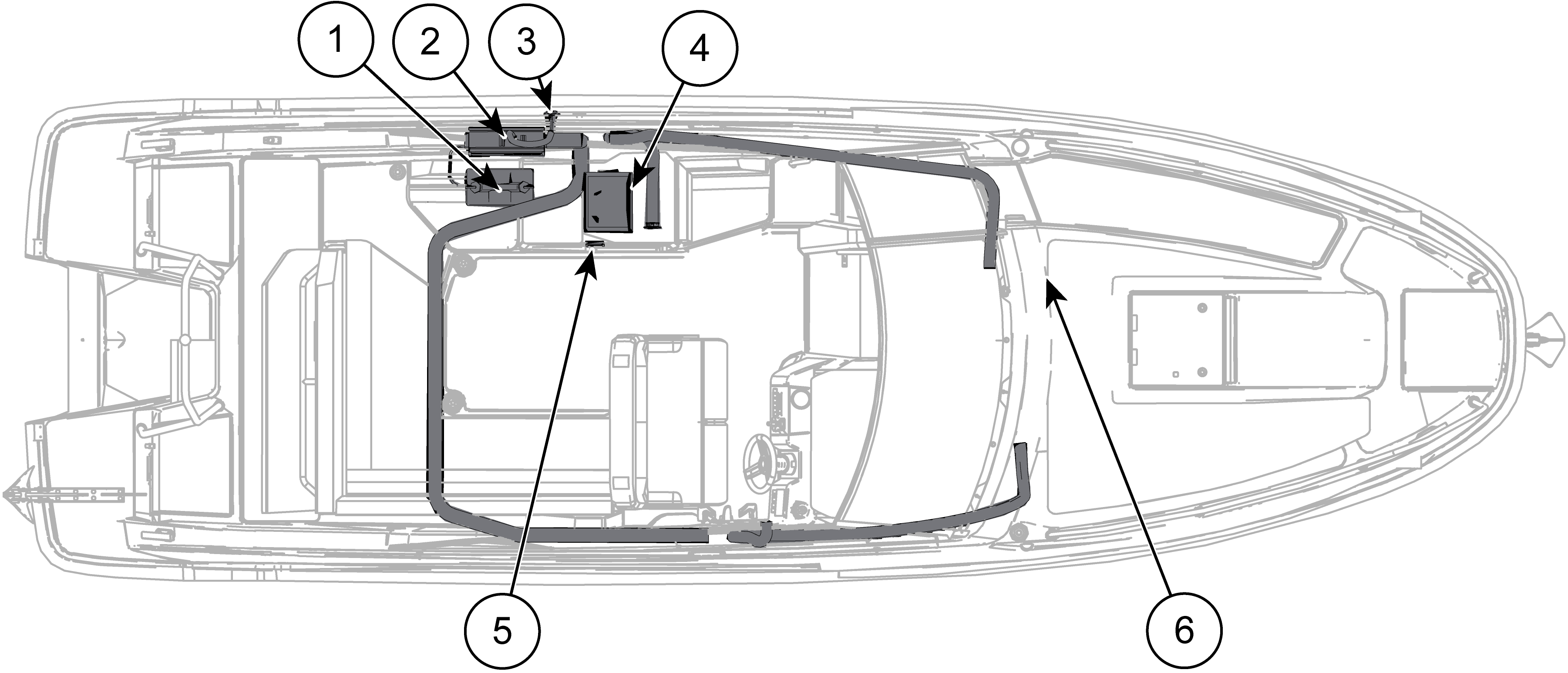

Figure 1. Yamarin 80 DC
fuel-operated equipment
1 | Diesel tank | 4 | Stove |
2 | Heater or combi heater | 5 | Stove control panel |
3 | Heater exhaust | 6 | Heater control panel |
