6.2.6.1 Trim system components

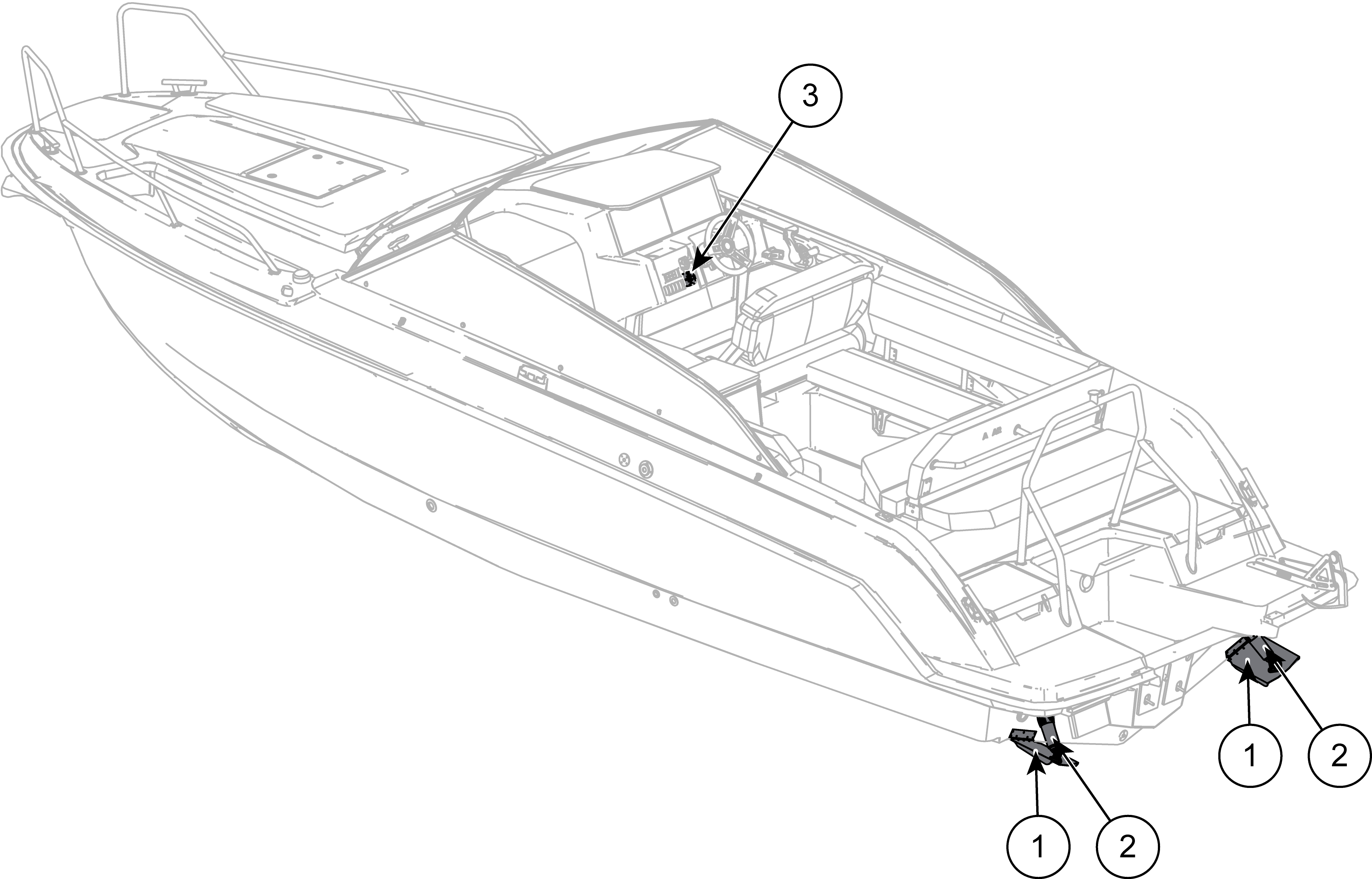

Figure 1. Yamarin DC 80 trim system
1 | Trim tab | 3 | Trim controls |
2 | Trim cylinder |
