9.2.1 Switch and fuse descriptions

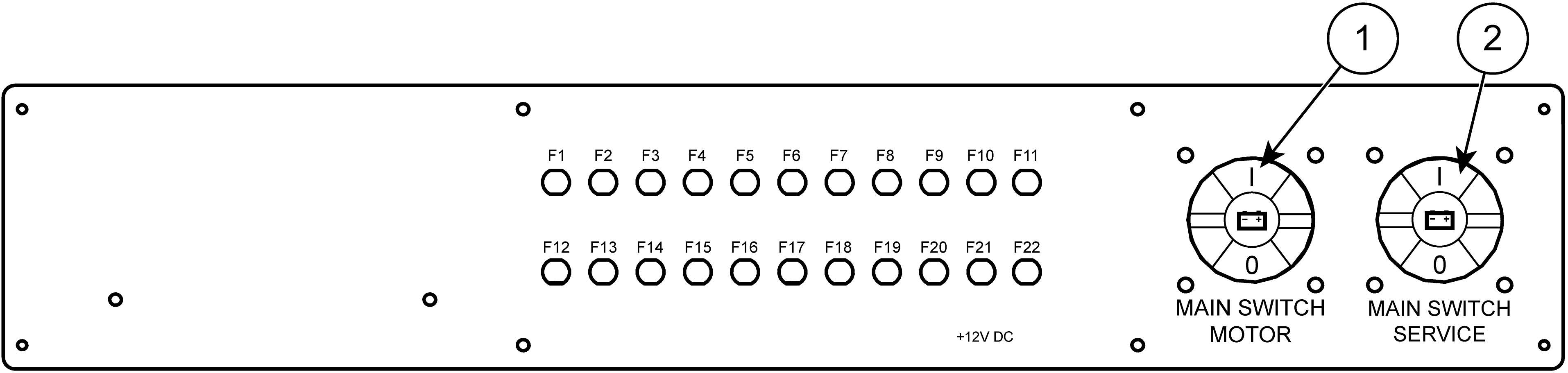

Figure 1. Yamarin 80 DC
main switches and fuse panel
| 1 |
Main switch motor |
F11 |
Solar panel |
15A |
|
| 2 |
Main switch service |
F12 |
Yamarin Q |
10A |
|
| F1 |
Fridge * |
15A |
F13 |
Bilge pump |
5A |
| F2 |
Heater * |
15A |
F14 |
Toilet light |
10A |
| F3 |
Stove * |
15A |
F15 |
Windscreen wipers |
10A |
| F4 |
Water heater * |
15A |
F16 |
Deck lights |
5A |
| F5 |
Freshwater pump |
10A |
F17 |
Trim tabs |
20A |
| F6 |
Navigation lights |
10A |
F18 |
Underwater lights |
10A |
| F7 |
Audio |
20A |
F19 |
Toilet |
25A |
| F8 |
DC outlet |
15A |
F20 |
Reading light |
10A |
| F9 |
NMEA |
3A |
F21 |
Fishfinder |
10A |
| F10 |
Cabin lights |
10A |
F22 |
Power steering |
40A |
* These fuses are on/off type fuses, and they function as the main switch for the related equipment.
