6.1.1 Control device locations

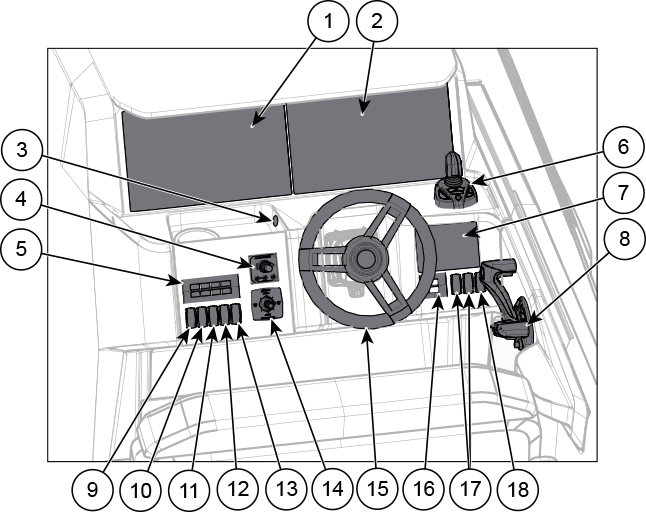

Figure 1. Yamarin 80 DC
helm station controls
1 | Yamarin Q+ | 10 | Bilge pump switch |
2 | Yamarin Q | 11 | Underwater lights switch |
3 | USB-socket | 12 | Deck lights switch |
4 | Bow thruster control panel | 13 | Navigation lights switch |
5 | Autopilot control panel | 14 | Trim tabs controller |
6 | Manoeuvring joystick | 15 | Steering wheel |
7 | CL-5 touch screen | 16 | Power and start buttons |
8 | Remote control and emergency cut-off switch | 17 | Windshield wipers switch |
9 | Water pump switch | 18 | Signal horn switch |

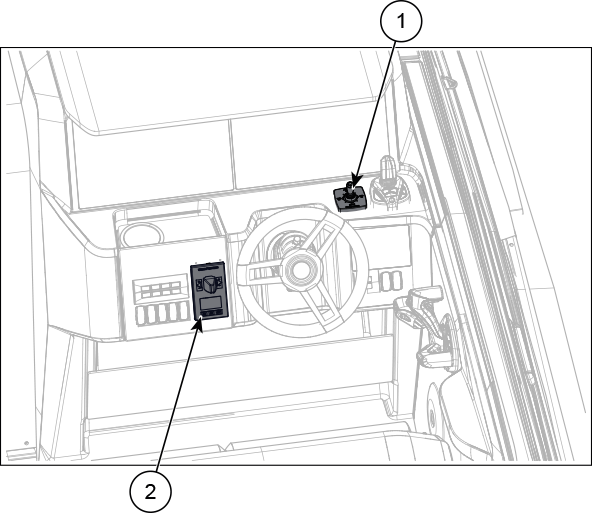

Figure 2. Helm station
controls when equipped with integrated bow thruster
1 | Trim tabs controller |
2 | Bow thruster control panel |
