12.3.1 Air conditioning system components

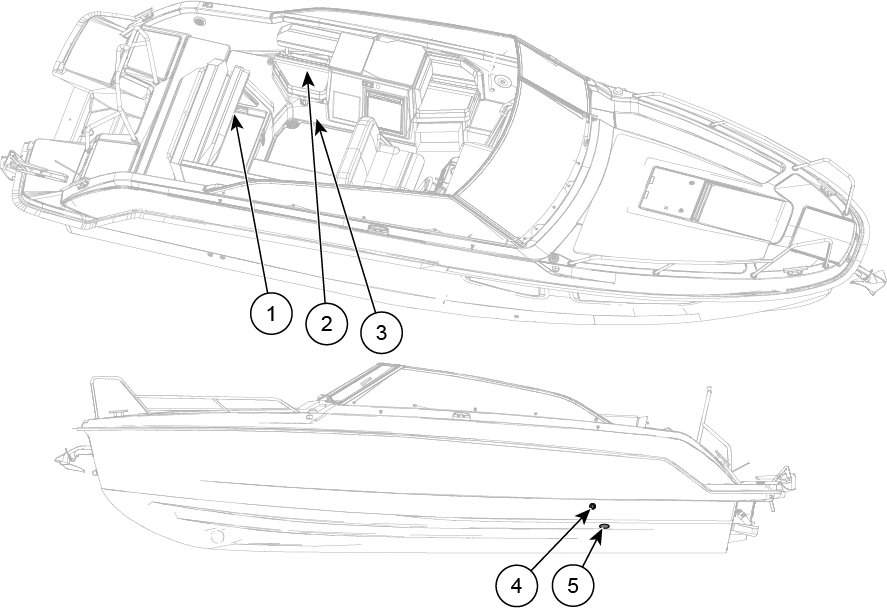

Figure 1. Yamaring 80
DC air conditioning system
1 | Main switch and fuse | 4 | Cooling water outlet |
2 | Air conditioning battery charger | 5 | Cooling water inlet |
3 | Air conditioning unit * |
* Accessible through a service hatch in the mid cabin.
