12.1.1 Septic system components

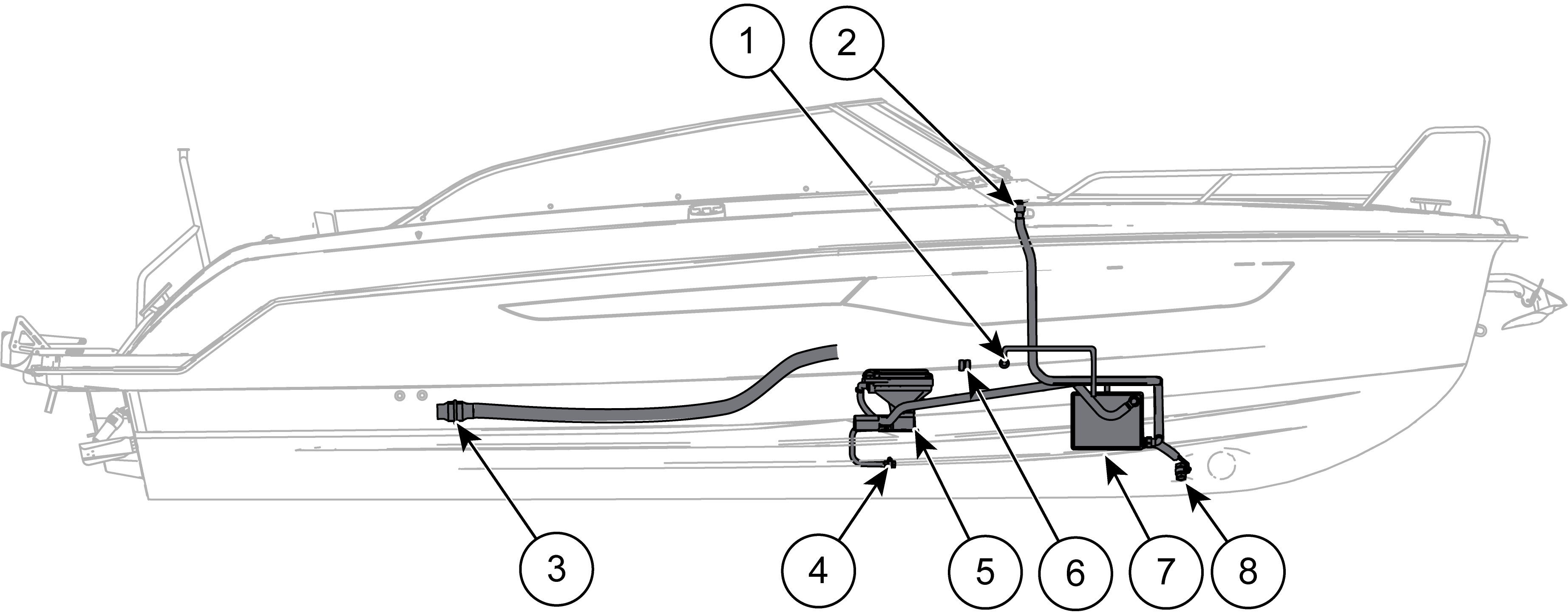

Figure 1. Yamarin 80 DC
septic system
1 | Septic tank breather through fitting | 5 | Toilet |
2 | Septic tank vacuum drain fitting | 6 | Toilet light and blower switches |
3 | Air blower | 7 | Septic tank |
4 | Toilet flushing water intake valve | 8 | Septic tank sea drainage valve |
