9.2.2 Fuse panel locations

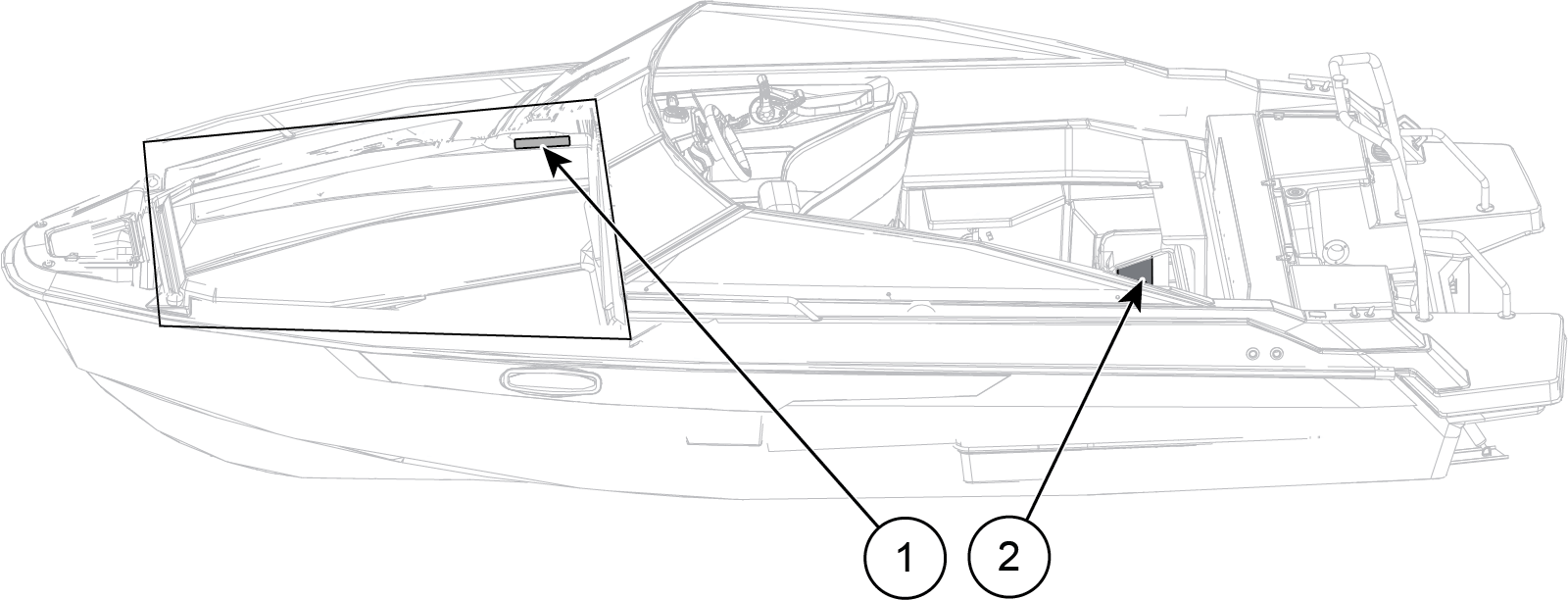

Figure 1. Yamarin 63 DC
fuse panel locations

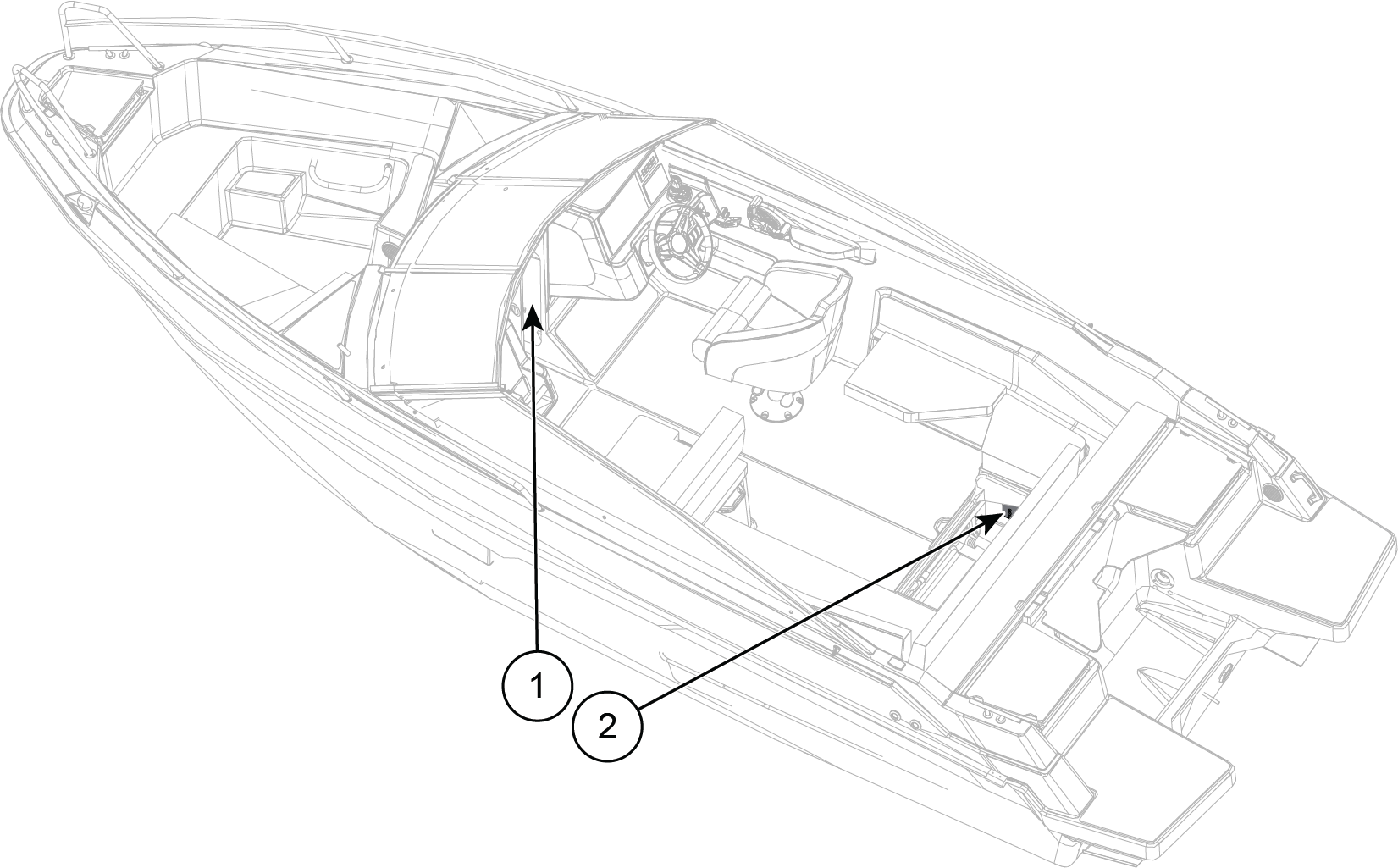

Figure 2. Yamarin 63 BR
fuse panel locations
1 | Additional fuse panel |
2 | Main switch and fuse panel |
This browser or version is not supported, or it is running in compatibility mode. Try a current or recent major release of Chrome, Firefox, Internet Explorer, or Safari, or disable the compatibility mode.
1 | Additional fuse panel |
2 | Main switch and fuse panel |
