9.2.1 Switch and fuse descriptions

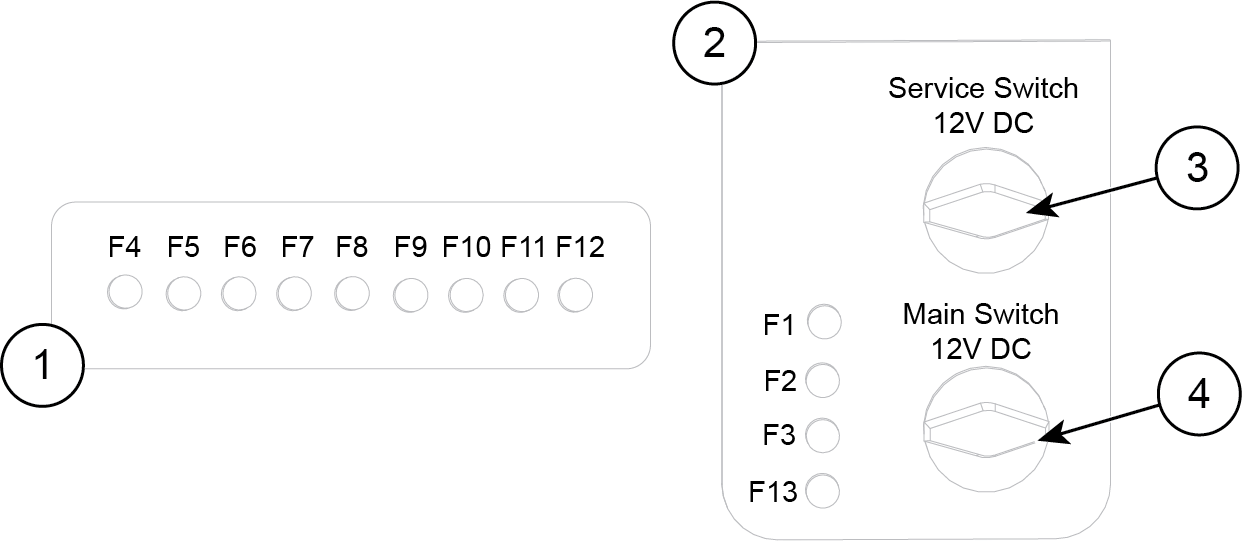

Figure 1. Yamarin 63 DC/BR
main switches and fuse panel
| 1 |
Additional fuse panel |
F6 |
12 V outlet |
15 A |
|
| 2 |
Main switch and fuse panel |
F7 |
Bilge pump manual use |
10A |
|
| 3 |
Main switch service |
F8 |
Windshield wipers |
10 A |
|
| 4 |
Main switch motor |
F9 |
Extra |
10 A |
|
| F1 |
Bilge pump |
10 A |
F10 |
NMEA |
3 A |
| F2 |
Main fuse |
30 A |
F11 |
Fishfinder |
10 A |
| F3 |
Refrigerator |
15 A |
F12 |
Extra |
10 A |
| F4 |
Trim tabs |
25 A |
F13 |
Yamarin Q |
5 A |
| F5 |
Lights |
5 A |
