13.2.1 Air conditioning system components

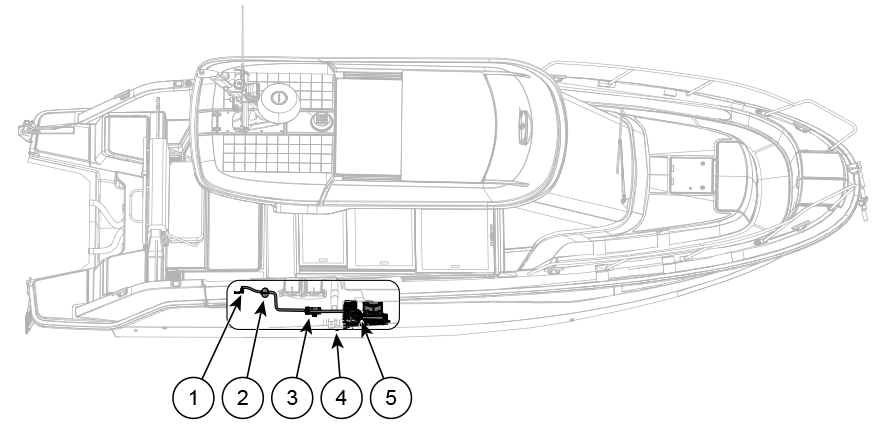

Figure 1. Air conditioning system
1 |
Cooling water inlet through hull and shut off valve | 4 | Cooling water outlet through hull |
2 |
Cooling water strainer | 5 | Air conditioning unit |
3 |
Water pump |
