9.5.1 Locations of electrical equipment

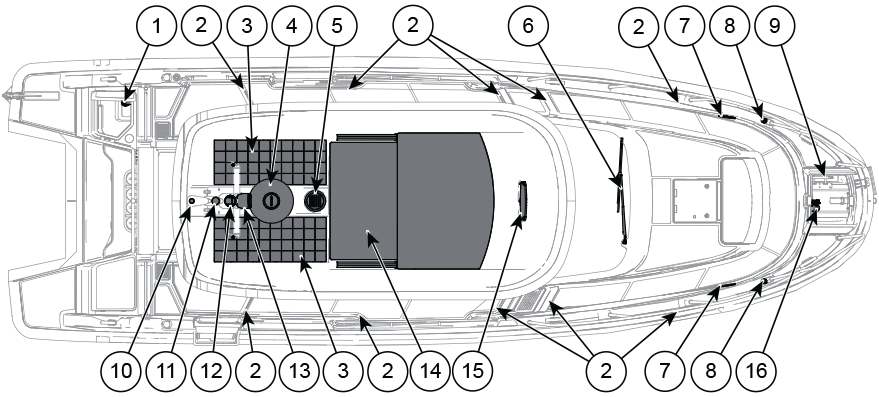

1 |
Anchor winch | 9 | Windshield washer pump |
2 |
Deck light | 10 | Anchor light |
3 |
Solar panel | 11 | GPS antenna |
4 |
Radar | 12 | Night vision camera |
5 |
Solar-powered air vent | 13 | Search light |
6 |
Windshield wiper | 14 | Sunroof |
7 |
Loudspeaker | 15 | Bow docking light |
8 |

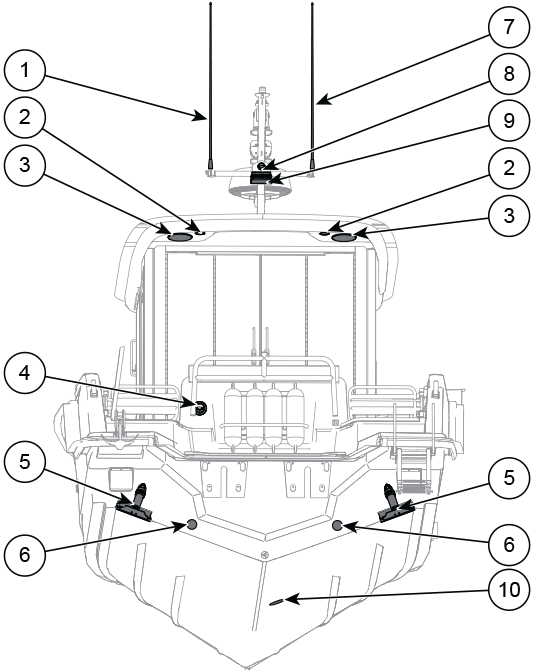

Navigation light | 16 | Bow anchor winch |
1 |
Radio antenna | 6 | Underwater lights |
2 |
Spotlight | 7 | VHF/AIS antenna |
3 |
Loudspeaker | 8 | Reversing camera |
4 |
Shore power inlet | 9 | Rear docking light |
5 |
Trim tab | 10 | Sonar |

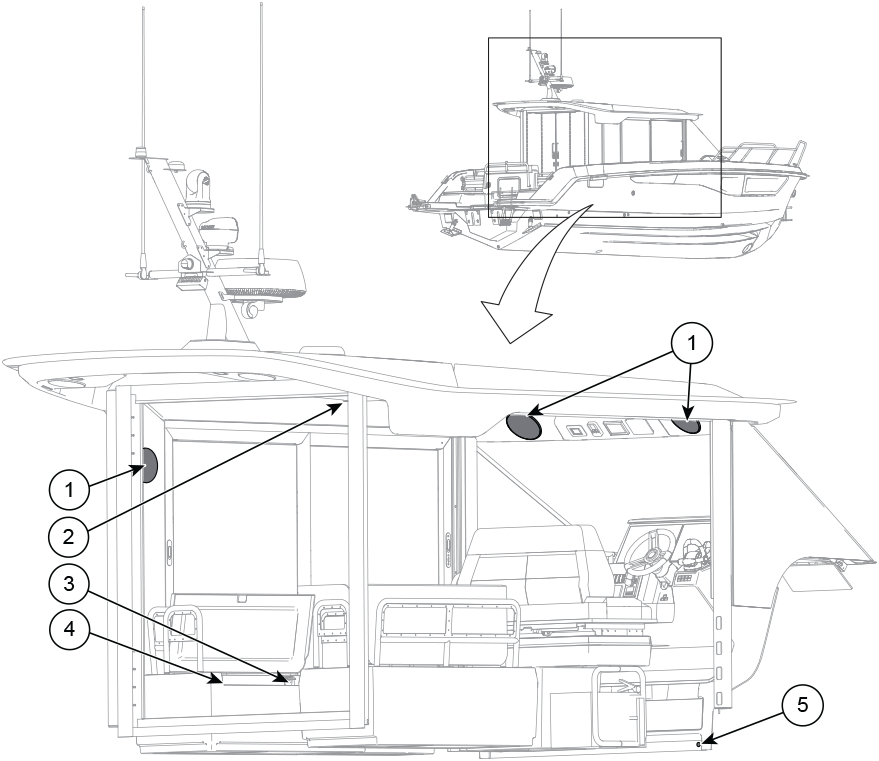

1 |
Remote control switches for main switches | 5 | Engine batteries |
2 |
Loudspeaker | 6 | Nightlight |
3 |
Spotlight | 7 | Refrigerator |
4 |
Amplifier and Fusion Black Box |

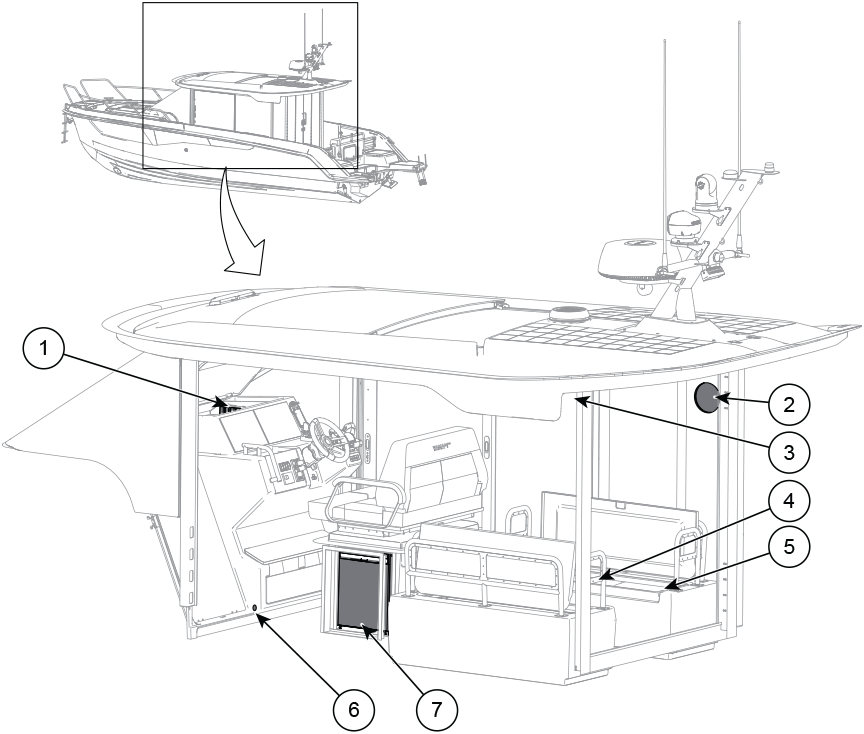

1 |
Loudspeaker | 4 | Main switches |
2 |
Spotlight | 5 | Nightlight |
3 |
Inverter main switch |

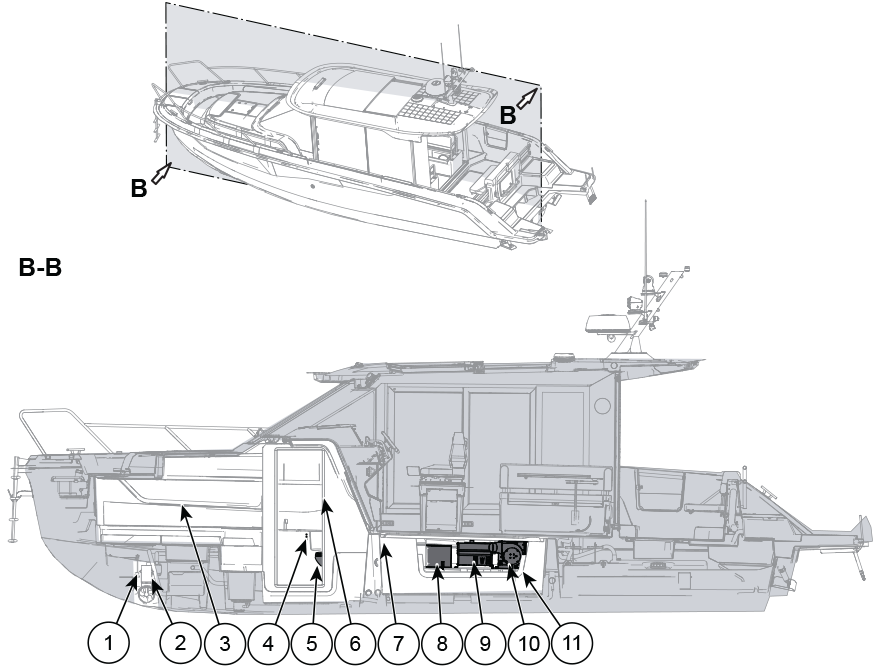

1 |
Solar panel fuses | 9 | Inverter charger |
2 |
Battery management system | 10 | Mid cabin lights |
3 |
SmartShunt battery monitor | 11 | Bow fuse panel |
4 |
Battery distributors | 12 | 110/230 V socket |
5 |
Solar panel controllers | 13 | Digital switch control switches |
6 |
Bow thruster DC/DC charger | 14 | Cabin lights |
7 |
Additional fuses | 15 | Spotlight |
8 |
System controller for electric system |

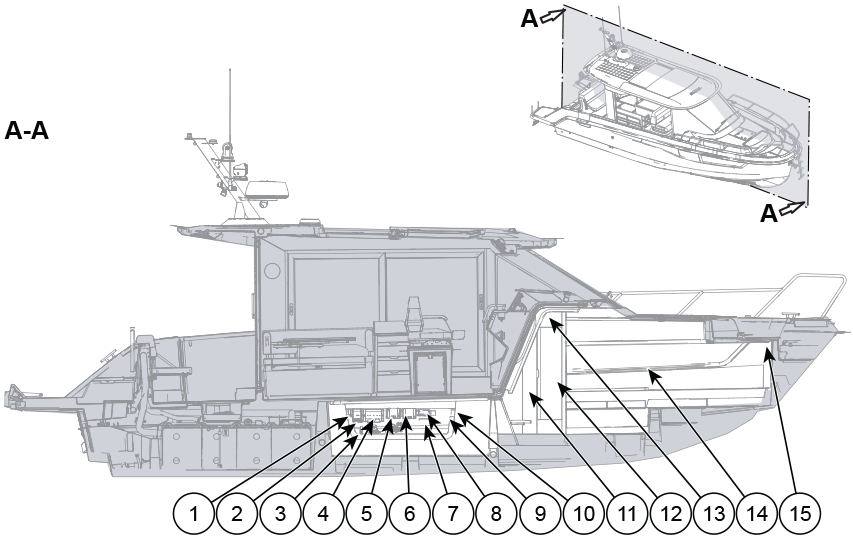

1 |
Bow anchor fuse and controller | 7 | Spotlight |
2 |
Bow thruster, bow thruster fuse and additional main switch | 8 | Water boiler |
3 |
Cabin lights | 9 | Water and air heater |
4 |
Toilet light switches | 10 | Air conditioning unit |
5 |
Toilet | 11 | Mid cabin lights |
6 |
Toilet lights |
