9.6.3 Cabin lights
The cabin light switch is located on the cabin ceiling, on the left side of the door when entering the cabin.
The cabin has two separate light switch panels. One on the left side of the door when entering the cabin and one in the toilet.

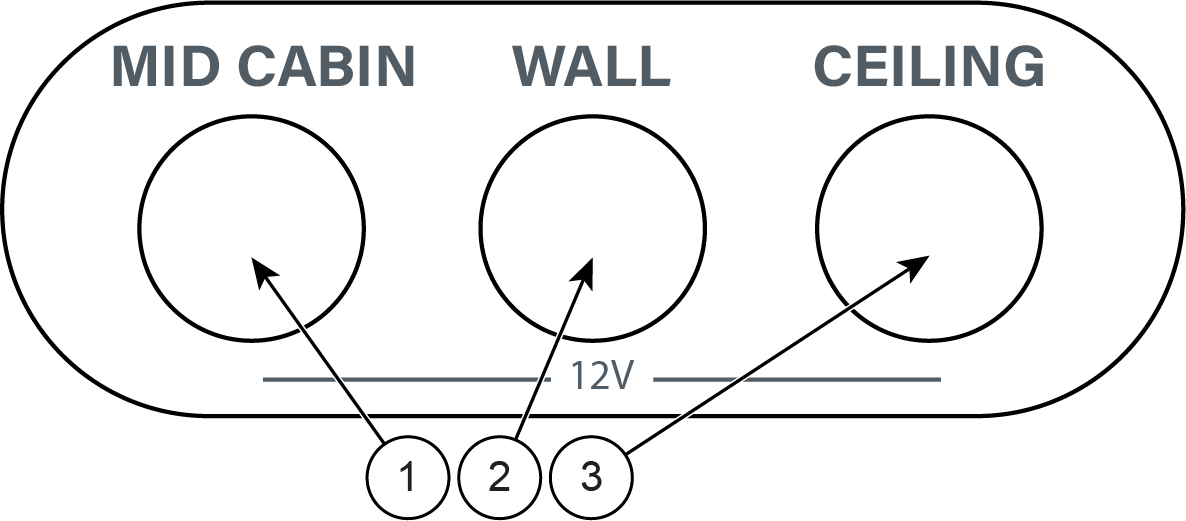

Figure 1. Cabin light
switch
1 | Mid cabin light switch | 3 | Bow cabin ceiling light switch |
2 | Wall light switch |

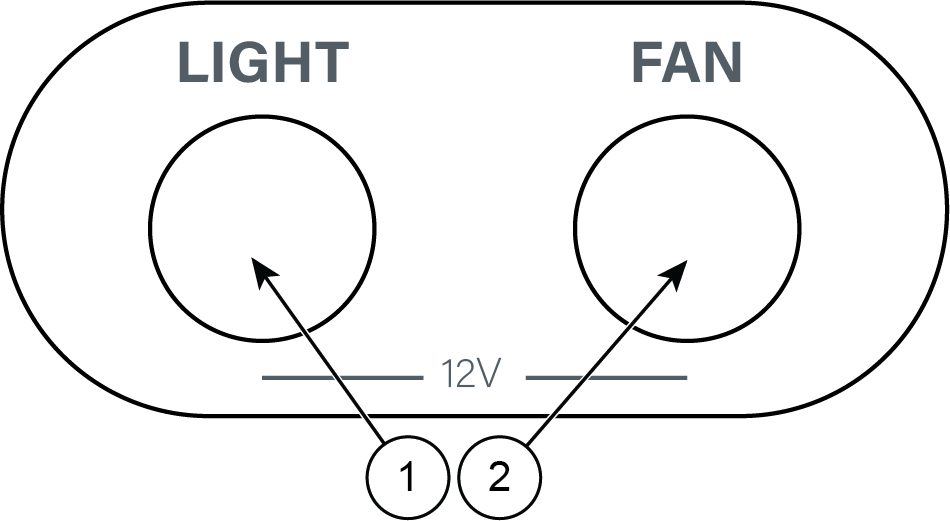

Figure 2. Toilet light
switch
1 | Toilet light switch |
2 | Toilet fan switch |
