9.6.1 Locations of electrical equipment

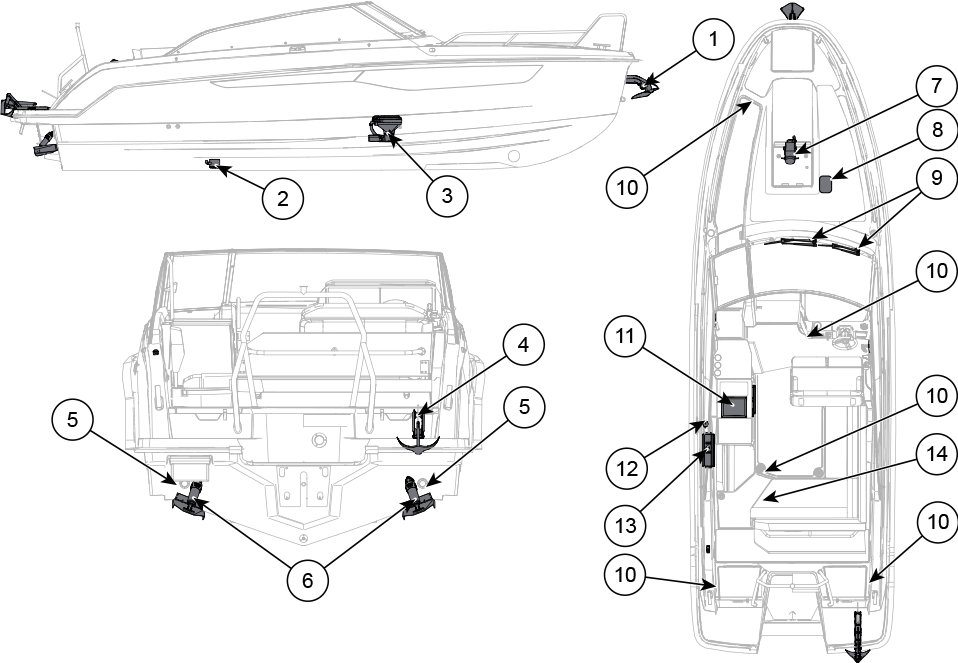

Figure 1. Yamarin 80 DC electrical equipment

1	Bow anchor winch	8	Bow thruster power control unit *
2	Bilge pump	9	Windshield wipers
3	Toilet	10	Deck lights
4	Anchor winch	11	Stove
5	Underwater lights	12	Water pump
6	Trims	13	Heater or combi heater
7	Bow thruster, Bow thruster battery, additional power switches	14	Main switches and fuse panel

* Available when the boat is equipped with integrated bow thruster controller.

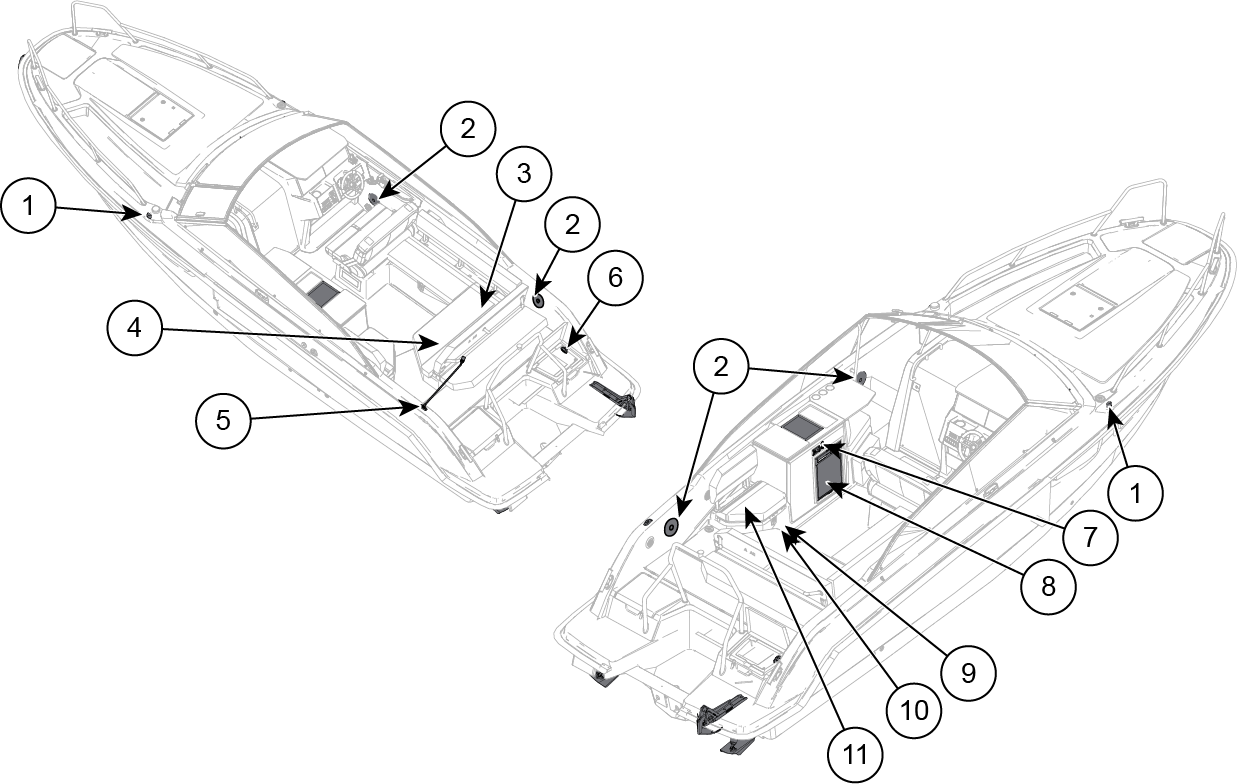

Figure 2. Yamarin 80 DC electrical equipment

1	Navigation lights	7	Refrigerator power switch
2	Loudspeakers	8	Refrigerator
3	Shore power RCD (when the boat has air conditioning)	9	Shore power RCD * (when the boat is without air conditioning)
4	Air conditioning main switch and fuse	10	Air conditioning unit *
5	Light mast	11	Air conditioning battery charger
6	Shore power inlet

* Accessible through a service hatch in the mid cabin

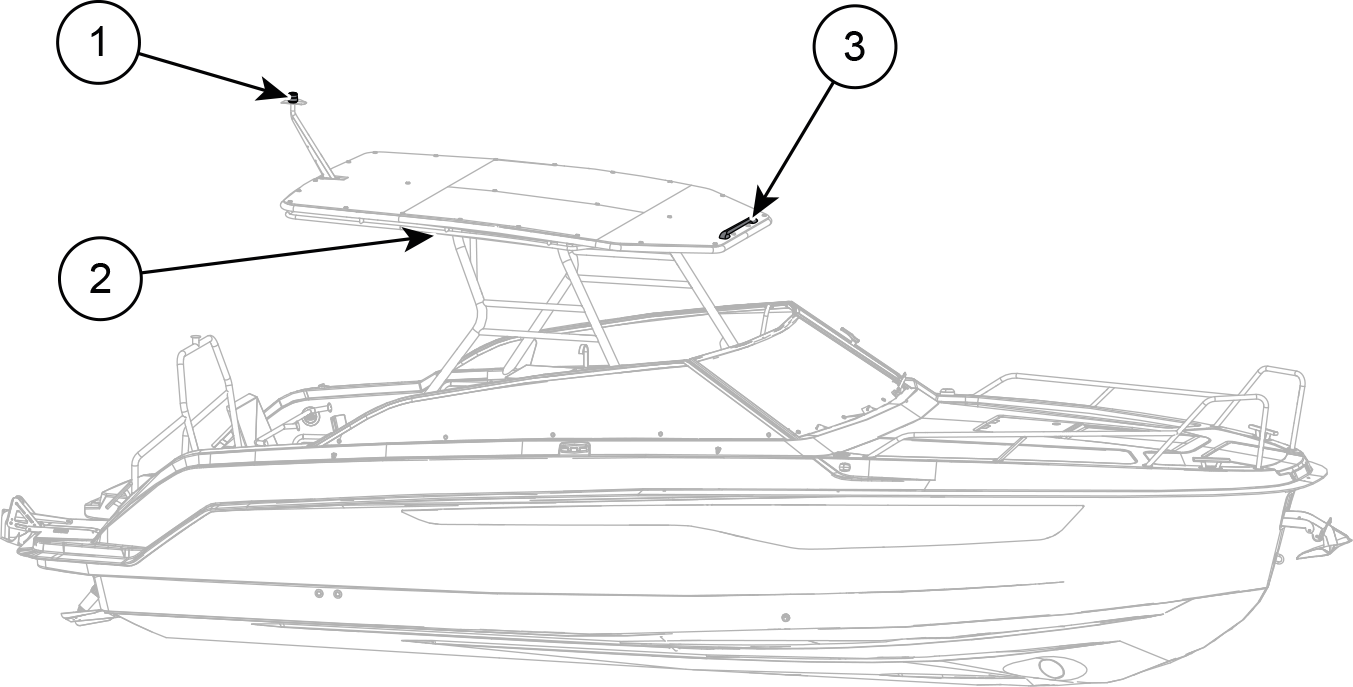

Figure 3. Electrical equipment of the optional T-top

1	Anchor light	3	Optional docking light
2	Led strip
