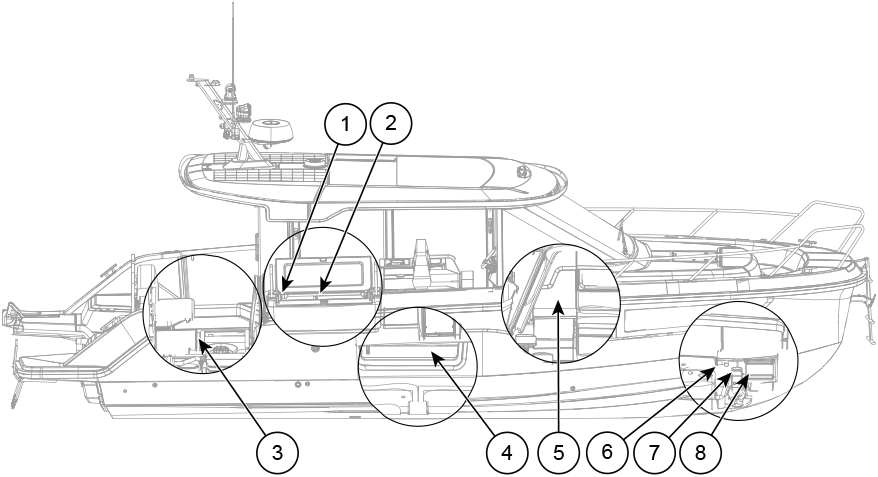

9.2.2 Fuse panel locations

1

Remote controlled main switches

5

Forward fuse panel

2

Aft fuse panel and main switches

6

Bow anchor winch main fuse 150 A

3

Aft anchor winch main fuse 150 A

7

Bow thruster main switch

4

Additional fuses in mid cabin technical space

8

Bow thruster fuse 325 A
