9.2.1 Switch and fuse descriptions

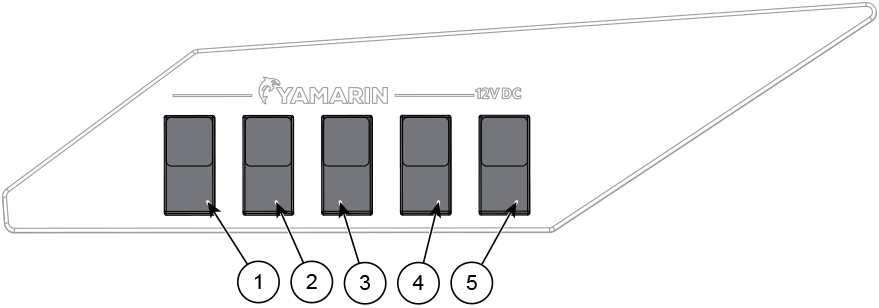

Figure 1. Remote controlled main switches

Position	Description	Position	Description
1	Port side engine main switch*	3	Service battery 1 main switch*
2	Starboard side engine main switch*	4	Service battery 2 main switch*

* Only with optional remote controlled main switches.

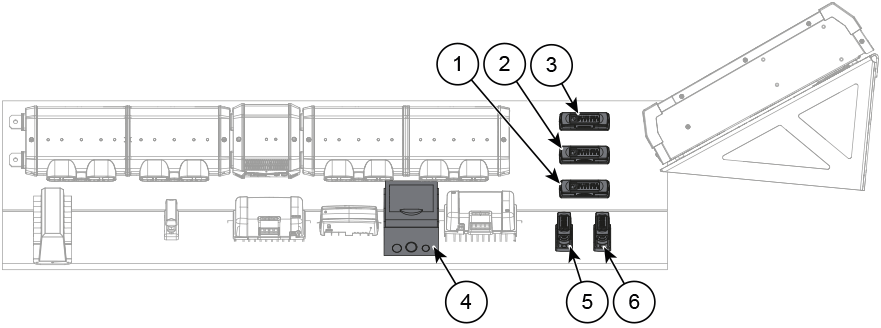

Figure 2. Remote control for main switches

Position	Description	Position	Description
1	Bow thruster main switch*	4	Service battery 1 main switch*
2	Port side engine main switch*	5	Service battery 2 main switch*
3	Starboard side engine main switch*

* Only with optional remote controlled main switches.

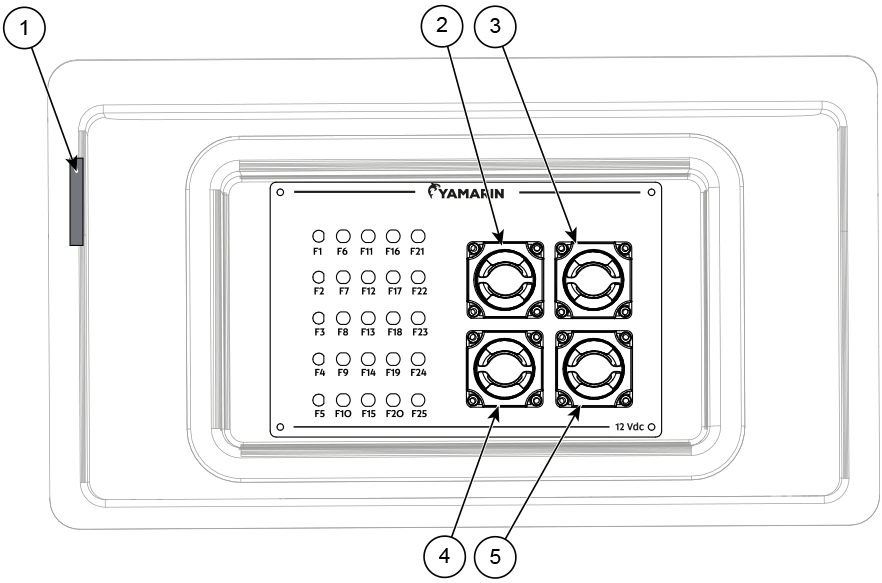

Figure 3. Aft fuse panel and main switches

Position	Description	Amperage	Position	Description	Amperage
1	Inverter main switch		F11	Atmos pump	15 A
2	Port side engine main switch*		F12	Sump pump	10 A
3	Starboard side main switch*		F13	Extra	15 A
4	Service battery 1 main switch*		F14	Gyro	10 A
5	Service battery 2 main switch*		F15	Fusion Black Box	15 A
F1	Stove**	15 A	F16	4G router	5 A
F2	Heater**	15 A	F17	Gen control	20 A
F3	Clean water pump**	10 A	F18	Air conditioning control	10 A
F4	Water pump**	10 A	F19	Heater blower	15 A
F5	Deck wash water pump**	15 A	F20	Amplifier	50 A
F6	Yamarin Q	10 A	F21	Wireles unit	5 A
F7	Bilge pump aft	5 A	F22	Extra	5 A
F8	Bilge pump forward	5 A	F23	Extra	7 A
F9	Spare	10 A	F24	Extra	20 A
F10	Cool box	15 A	F25	Amplifier	50 A

* If not equipped with remote controlled main switches

** On/off type fuse, functions as a main switch

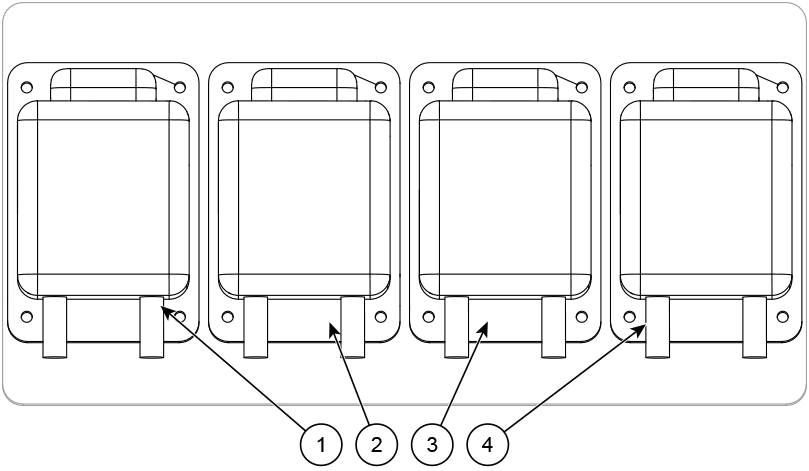

Figure 4. Mid cabin technical spaces fuses

Position	Description	Amperage	Position	Description	Amperage
1	Bow fuse panel main fuse	100 A	4	Solar panel fuses	16 A
2	Digiswitch main fuse	100 A	5	DC/DC in main fuse	70 A
3	Aft fuse panel main fuse	100 A	6	DC/DC out main fuse	70 A

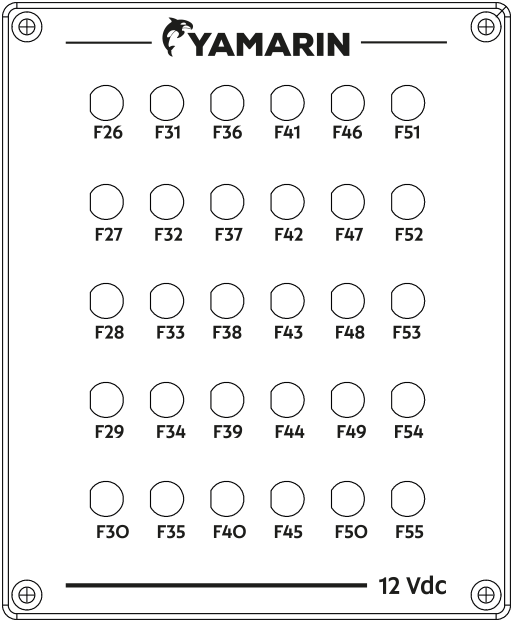

Figure 5. Forward fuse panel

Position	Description	Amperage	Position	Description	Amperage
F26	NMEA	3 A	F41	IP camera	3 A
F27	AIS	5 A	F42	Extra	15 A
F28	Fusion radio	15 A	F43	Tank meter	3 A
F29	Fishfinder	10 A	F44	Tank meter	3 A
F30	12 V outlet	15 A	F45	Tank meter	3 A
F31	USB	15 A	F46	VHF	5 A
F32	Read light	10 A	F47	Toilet fan	10 A
F33	LED control	7 A	F48	Toilet	20 A
F34	Horn	10 A	F49	Toilet light	10 A
F35	Windscreen wipers	30 A	F50	Trim tabs	25 A
F36	AIS/VHF	10 A	F51	Navigation lights	5 A
F37	Search light	5 A	F52	Antenna FM	3 A
F38	Radar	5 A	F53	Network expander	3 A
F39	Omnisense	3 A	F54	Bilge pump aft	5 A
F40	Sunroof	20 A	F55	Bilge pump forward	5 A
